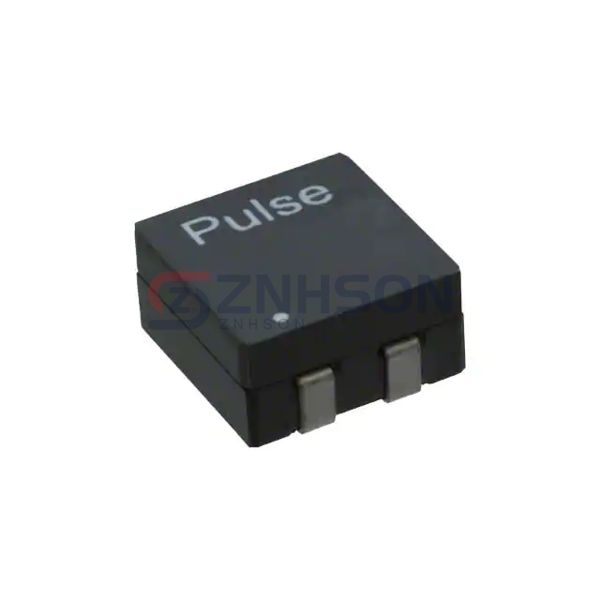

PA0766.561NLT
Pulse Electronics Power
Pulse Electronics Power
INDUCT ARRAY 2 COIL 284NH SMD
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PA0766.561NLT Pulse Electronics Power Inductors, Coils, and Chokes are designed to excel in Arrays and Signal Transformers applications. Offering high efficiency, compact size, and robust performance, they are ideal for portable electronics and power management systems. Don t miss out get a quote today and see why leading engineers trust our products!
Specifications
- Product Status: Obsolete
- Number of Coils: 2
- Inductance - Connected In Parallel: 284 nH
- Inductance - Connected In Series: 1.14 µH
- Tolerance: ±20%
- Current Rating - Parallel: 37 A
- Current Rating - Series: 18.5 A
- Current Saturation - Parallel: 37 A
- Current Saturation - Series: 18.5 A
- DC Resistance (DCR) - Parallel: 0.38mOhm Max
- DC Resistance (DCR) - Series: 1.5mOhm Max
- Shielding: Unshielded
- Ratings: -
- Operating Temperature: -40°C ~ 130°C
- Mounting Type: Surface Mount
- Package / Case: Nonstandard
- Size / Dimension: 0.551" L x 0.531" W (14.00mm x 13.50mm)
- Height: 0.276" (7.00mm)
