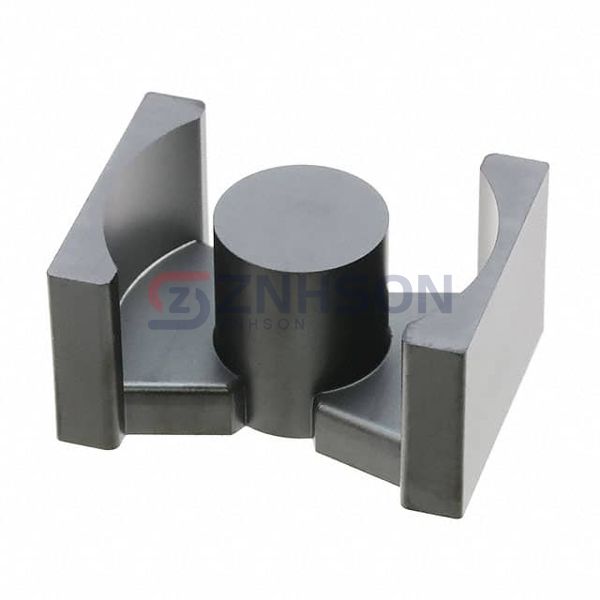

PC44PQ40/40Z-12
TDK Corporation
TDK Corporation
FERRITE CORE 2PC SET
$4.64
Available to order
Reference Price (USD)
1+
$2.84000
10+
$2.45000
25+
$1.86200
56+
$1.76411
112+
$1.56813
280+
$1.47014
504+
$1.37214
1,008+
$1.25942
5,040+
$1.22513
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Elevate your circuit designs with TDK Corporation PC44PQ40/40Z-12 Ferrite Cores, renowned for their high permeability and minimal energy dissipation. These cores are pivotal in creating efficient transformers, inductors, and chokes for various industries. Their robust performance in high-frequency applications makes them ideal for telecommunications and power electronics. Don't miss out on top-tier quality contact us now for pricing and availability details!
Specifications
- Product Status: Active
- Core Type: PQ
- Supplier Device Package: PQ 40 x 40
- Material: PC44
- Diameter: -
- Inductance Factor (Al): -
- Tolerance: ±25%
- Gap: Ungapped
- Effective Permeability (µe): -
- Initial Permeability (µi): -
- Core Factor (ΣI/A) mm-1: 0.508
- Effective Length (le) mm: 102
- Effective Area (Ae) mm²: 201
- Minimum Core Cross Section (Amin) mm²: -
- Effective Magnetic Volume (Ve) mm³: 20500
- Finish: Uncoated
- Height: 1.565" (39.75mm)
- Length: 1.594" (40.50mm)
- Width: 1.102" (28.00mm)
