B65701T1000A048
EPCOS - TDK Electronics
EPCOS - TDK Electronics

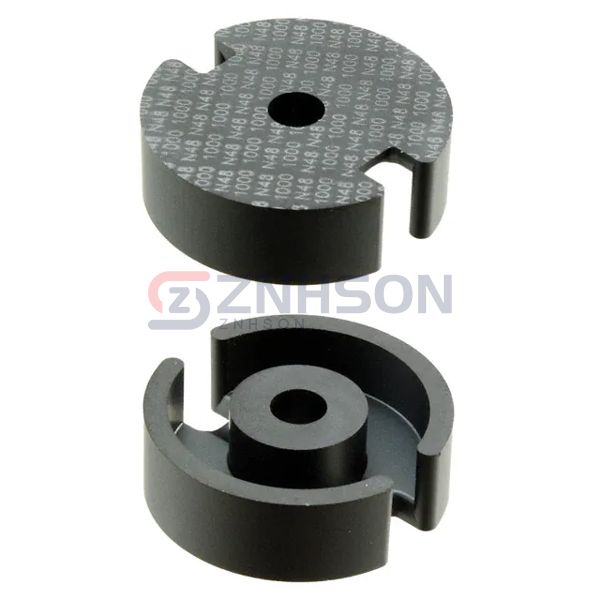

FERRITE CORE P 1UH N48 2PCS
$13.11
Available to order
Reference Price (USD)
1+
$9.23000
10+
$7.86500
25+
$5.98400
50+
$5.81300
100+
$5.12910
250+
$4.78716
500+
$4.44522
1,000+
$4.27425
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover high-quality EPCOS - TDK Electronics B65701T1000A048 Ferrite Cores, essential components for efficient power conversion and noise suppression in electronic circuits. These cores are widely used in transformers, inductors, and various EMI suppression applications. Their excellent magnetic properties ensure optimal performance in high-frequency operations. Ideal for power supplies, telecommunications, and automotive electronics. Contact us today for a quote and let our experts assist you with your specific requirements!
Specifications
- Product Status: Active
- Core Type: P (Pot Core)
- Supplier Device Package: P 30 x 19
- Material: N48
- Diameter: 1.200" (30.50mm)
- Inductance Factor (Al): 1 µH
- Tolerance: ±3%
- Gap: Gapped
- Effective Permeability (µe): 263
- Initial Permeability (µi): -
- Core Factor (ΣI/A) mm-1: 0.33
- Effective Length (le) mm: 45
- Effective Area (Ae) mm²: 136
- Minimum Core Cross Section (Amin) mm²: -
- Effective Magnetic Volume (Ve) mm³: 6120
- Finish: Uncoated
- Height: 0.374" (9.50mm)
- Length: -
- Width: -
Related Products
EPCOS - TDK Electronics
B66305G0130X187
EPCOS - TDK Electronics
B66307G0060X187
Ferroxcube
E56/24/19-3C94
EPCOS - TDK Electronics
B66317G0100X187
Ferroxcube
TX42/26/13-3E10-M
EPCOS - TDK Electronics
B66311G0090X127
EPCOS - TDK Electronics
B66397Q0400K195
TDK Corporation

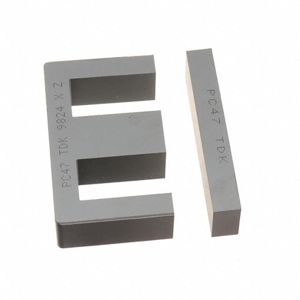

PC47EI60-Z
