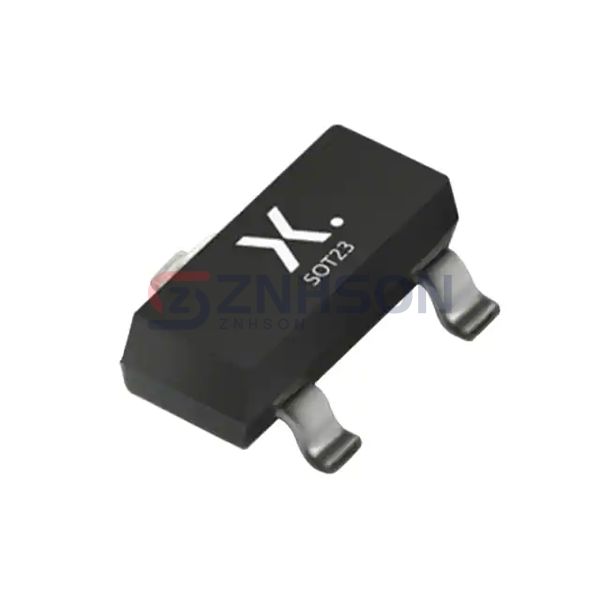

PMV100XPEAR
Nexperia USA Inc.
Nexperia USA Inc.
MOSFET P-CH 20V 2.4A TO236AB
$0.48
Available to order
Reference Price (USD)
3,000+
$0.09702
6,000+
$0.08831
15,000+
$0.07960
30,000+
$0.07524
75,000+
$0.06783
150,000+
$0.06566
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with PMV100XPEAR by Nexperia USA Inc., a top-tier choice in Discrete Semiconductor Products. Specifically crafted for Transistors - FETs, MOSFETs - Single applications, this product offers superior power handling and energy efficiency. Key features include high voltage tolerance, minimal power loss, and robust durability, making it perfect for switching and amplification tasks. Whether for industrial machinery, renewable energy systems, or portable devices, PMV100XPEAR ensures reliable operation. Ready to integrate this component into your project? Submit an inquiry now for pricing and availability!
Specifications
- Product Status: Active
- FET Type: P-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 20 V
- Current - Continuous Drain (Id) @ 25°C: 2.4A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 2.5V, 4.5V
- Rds On (Max) @ Id, Vgs: 128mOhm @ 2.4A, 4.5V
- Vgs(th) (Max) @ Id: 1.25V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 6 nC @ 4.5 V
- Vgs (Max): ±12V
- Input Capacitance (Ciss) (Max) @ Vds: 386 pF @ 10 V
- FET Feature: -
- Power Dissipation (Max): 463mW (Ta), 1.9W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: TO-236AB
- Package / Case: TO-236-3, SC-59, SOT-23-3
