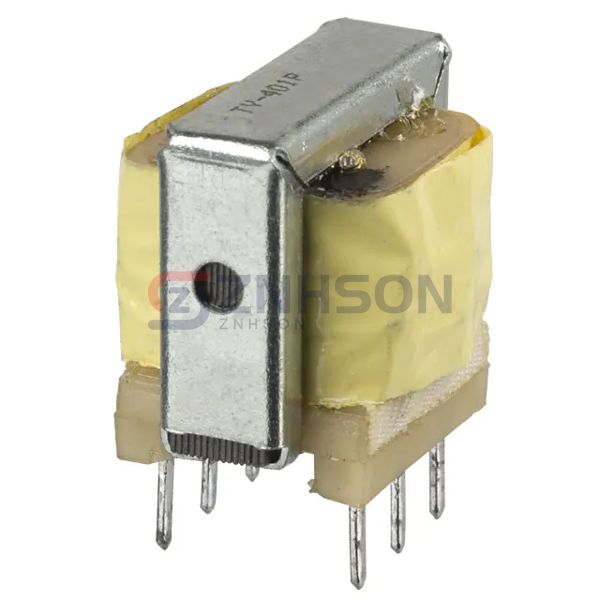

TY-401P-B
Triad Magnetics
Triad Magnetics
TRANSF 600 OHM CTAP 90MA DC TE
$3.32
Available to order
Reference Price (USD)
1,200+
$2.92900
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Boost your audio projects with Triad Magnetics TY-401P-B Audio Transformers, known for their robust construction and exceptional sound quality. These transformers are ideal for a wide range of applications, from PA systems to musical instruments, providing reliable and distortion-free performance. Count on Triad Magnetics for excellence in every component. Contact us now to discuss your requirements.
Specifications
- Product Status: Active
- Turns Ratio - Primary:Secondary: 1:1.07
- Impedance - Primary (Ohms): 600CT
- Impedance - Secondary (Ohms): 600CT
- DC Resistance (DCR) - Primary: 76.53Ohm
- DC Resistance (DCR) - Secondary: 108Ohm
- Transformer Type: Data/Voice Coupling
- Frequency Range: 300Hz ~ 3.5kHz
- Frequency Response: ±0.5dB
- Voltage - Isolation: 1500VAC
- Insertion Loss: 1.75dB Typ
- Return Loss: 15dB Typ
- Power Level: -45dB ~ 7dB
- Operating Temperature: -20°C ~ 85°C
- Approval Agency: -
- Mounting Type: Through Hole
- Size / Dimension: 0.820" L x 0.715" W (20.83mm x 18.16mm)
- Height - Seated (Max): 0.750" (19.05mm)
- Termination Style: PC Pin
