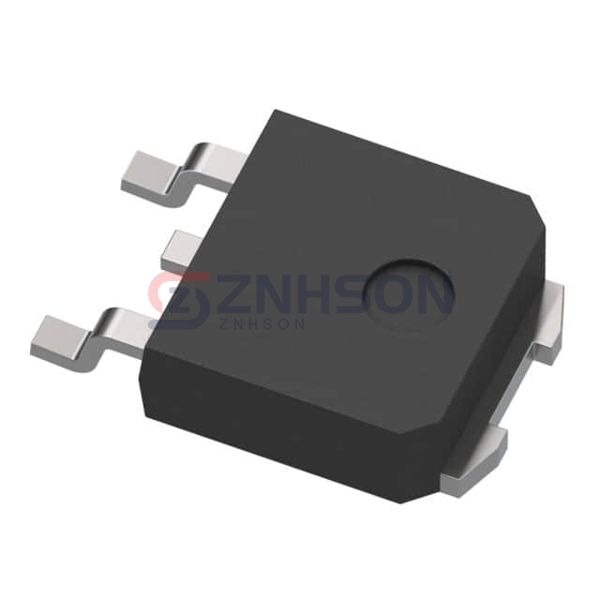

STD80N3LL
STMicroelectronics
STMicroelectronics
MOSFET N-CH 30V 80A DPAK
$1.00
Available to order
Reference Price (USD)
1+
$1.00000
500+
$0.99
1000+
$0.98
1500+
$0.97
2000+
$0.96
2500+
$0.95
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
STD80N3LL by STMicroelectronics is a standout in the Discrete Semiconductor Products market, specifically for Transistors - FETs, MOSFETs - Single applications. Engineered for precision, this MOSFET offers exceptional gate control, low leakage current, and high power density. Ideal for use in audio amplifiers, DC-DC converters, and battery management systems, STD80N3LL ensures top-tier performance. Don t miss out on this versatile component request a sample or quote now!
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 30 V
- Current - Continuous Drain (Id) @ 25°C: 80A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 5.2mOhm @ 40A, 10V
- Vgs(th) (Max) @ Id: 2.5V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 18 nC @ 4.5 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 1640 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 75W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: D-PAK (TO-252)
- Package / Case: TO-252-3, DPak (2 Leads + Tab), SC-63
