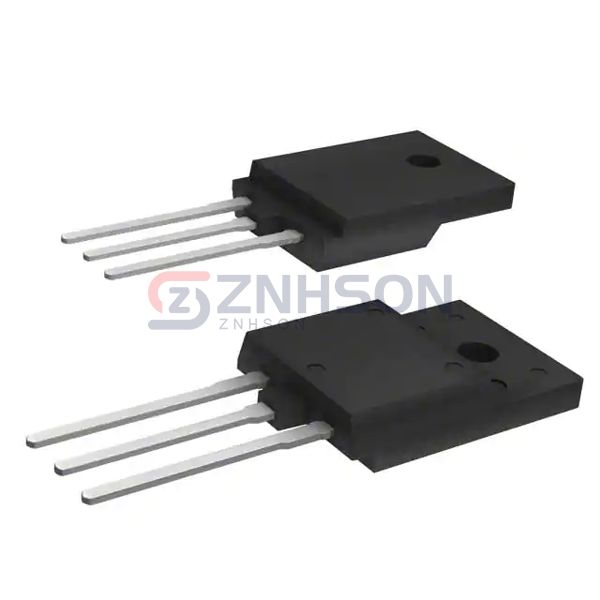

STGFW40V60F
STMicroelectronics
STMicroelectronics
IGBT 600V 80A 62.5W TO-3PF
$3.80
Available to order
Reference Price (USD)
1+
$5.50000
30+
$4.72233
120+
$4.13942
510+
$3.57606
1,020+
$3.07100
2,520+
$2.94150
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Choose STGFW40V60F Single IGBTs by STMicroelectronics for superior power handling in demanding environments. From railway systems to industrial drives, these transistors excel with features like avalanche ruggedness and integrated diodes. Their modular design simplifies installation and maintenance. STMicroelectronics's reputation for quality makes STGFW40V60F a smart investment. Email us now for datasheets and volume discounts!
Specifications
- Product Status: Obsolete
- IGBT Type: Trench Field Stop
- Voltage - Collector Emitter Breakdown (Max): 600 V
- Current - Collector (Ic) (Max): 80 A
- Current - Collector Pulsed (Icm): 160 A
- Vce(on) (Max) @ Vge, Ic: 2.3V @ 15V, 40A
- Power - Max: 62.5 W
- Switching Energy: 456µJ (on), 411µJ (off)
- Input Type: Standard
- Gate Charge: 226 nC
- Td (on/off) @ 25°C: 52ns/208ns
- Test Condition: 400V, 40A, 10Ohm, 15V
- Reverse Recovery Time (trr): -
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-3P-3 Full Pack
- Supplier Device Package: TO-3PF
