STGWT60V60DF
STMicroelectronics
STMicroelectronics
IGBT 600V 80A 375W TO3P
$4.86
Available to order
Reference Price (USD)
1+
$5.60000
30+
$4.75100
120+
$4.11750
510+
$3.50518
1,020+
$2.95617
2,520+
$2.81540
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize power control with STGWT60V60DF Single IGBTs from STMicroelectronics, a leader in semiconductor solutions. Suited for medical equipment, aerospace, and consumer electronics, these transistors deliver precise switching and minimal noise. Highlights include high input impedance, scalable power ratings, and RoHS compliance. STMicroelectronics ensures STGWT60V60DF meets rigorous performance benchmarks. Inquire today to find the perfect fit for your application!
Specifications
- Product Status: Obsolete
- IGBT Type: Trench Field Stop
- Voltage - Collector Emitter Breakdown (Max): 600 V
- Current - Collector (Ic) (Max): 80 A
- Current - Collector Pulsed (Icm): 240 A
- Vce(on) (Max) @ Vge, Ic: 2.3V @ 15V, 60A
- Power - Max: 375 W
- Switching Energy: 750µJ (on), 550µJ (off)
- Input Type: Standard
- Gate Charge: 334 nC
- Td (on/off) @ 25°C: 60ns/208ns
- Test Condition: 400V, 60A, 4.7Ohm, 15V
- Reverse Recovery Time (trr): 74 ns
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-3P-3, SC-65-3
- Supplier Device Package: -
Related Products
onsemi
FGB3245G2-F085
Infineon Technologies
IGW60T120FKSA1
STMicroelectronics
STGWA40H120DF2
STMicroelectronics
STGW75H65DFB2-4
IXYS
IXYK120N120C3
Infineon Technologies
IKY75N120CS6XKSA1
IXYS
IXGH16N170A
Renesas Electronics America Inc

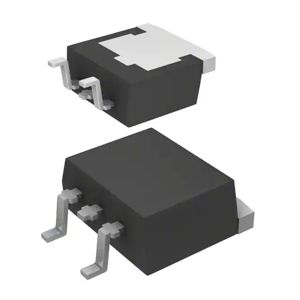

RJH60A83RDPE-00#J3
Microchip Technology

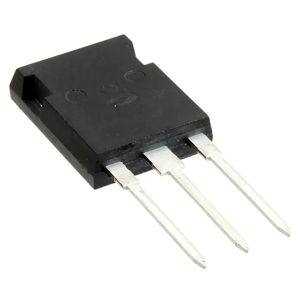

APT45GP120BG
