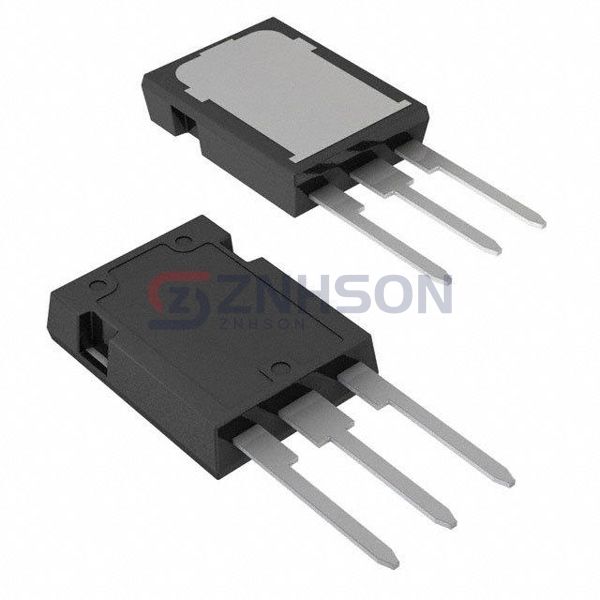

STGY50NC60WD
STMicroelectronics
STMicroelectronics
IGBT 600V 110A 278W MAX247
$16.97
Available to order
Reference Price (USD)
1+
$15.09000
30+
$13.43467
120+
$11.97942
510+
$10.78875
1,020+
$10.01700
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Choose STGY50NC60WD Single IGBTs by STMicroelectronics for superior power handling in demanding environments. From railway systems to industrial drives, these transistors excel with features like avalanche ruggedness and integrated diodes. Their modular design simplifies installation and maintenance. STMicroelectronics's reputation for quality makes STGY50NC60WD a smart investment. Email us now for datasheets and volume discounts!
Specifications
- Product Status: Active
- IGBT Type: -
- Voltage - Collector Emitter Breakdown (Max): 600 V
- Current - Collector (Ic) (Max): 110 A
- Current - Collector Pulsed (Icm): 180 A
- Vce(on) (Max) @ Vge, Ic: 2.6V @ 15V, 40A
- Power - Max: 278 W
- Switching Energy: 365µJ (on), 560µJ (off)
- Input Type: Standard
- Gate Charge: 195 nC
- Td (on/off) @ 25°C: 52ns/240ns
- Test Condition: 390V, 40A, 10Ohm, 15V
- Reverse Recovery Time (trr): 55 ns
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-247-3
- Supplier Device Package: MAX247™
