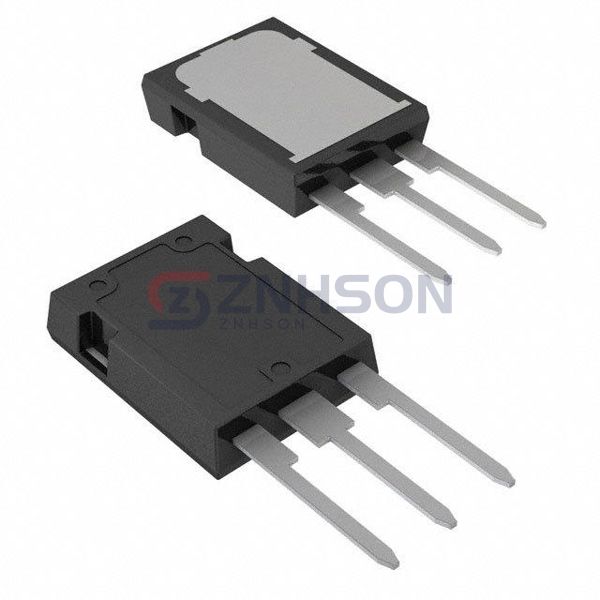

STGY80H65DFB
STMicroelectronics
STMicroelectronics
IGBT 650V 120A 469W MAX247
$14.45
Available to order
Reference Price (USD)
1+
$15.54000
30+
$13.83967
120+
$12.34075
510+
$11.11412
1,020+
$10.31910
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The STGY80H65DFB Single IGBT by STMicroelectronics is a game-changer for energy-efficient systems. Ideal for HVAC, robotics, and power distribution, it boasts fast turn-off times and low gate drive requirements. Its advanced technology reduces energy waste and improves system longevity. Trust STMicroelectronics for premium-quality transistors backed by exceptional support. Request a sample or quote now to start your next innovation!
Specifications
- Product Status: Obsolete
- IGBT Type: Trench Field Stop
- Voltage - Collector Emitter Breakdown (Max): 650 V
- Current - Collector (Ic) (Max): 120 A
- Current - Collector Pulsed (Icm): 240 A
- Vce(on) (Max) @ Vge, Ic: 2V @ 15V, 80A
- Power - Max: 469 W
- Switching Energy: 2.1mJ (on), 1.5mJ (off)
- Input Type: Standard
- Gate Charge: 414 nC
- Td (on/off) @ 25°C: 84ns/280ns
- Test Condition: 400V, 80A, 10Ohm, 15V
- Reverse Recovery Time (trr): 85 ns
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-247-3
- Supplier Device Package: MAX247™
Related Products
STMicroelectronics
STGW40V60DLF
Infineon Technologies
AIKB40N65DH5ATMA1
Infineon Technologies
IRGP4650D-EPBF
IXYS

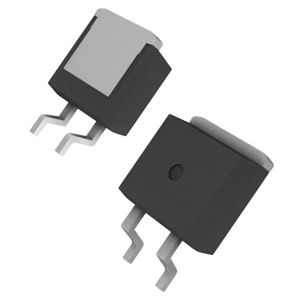

IXXA50N60B3
