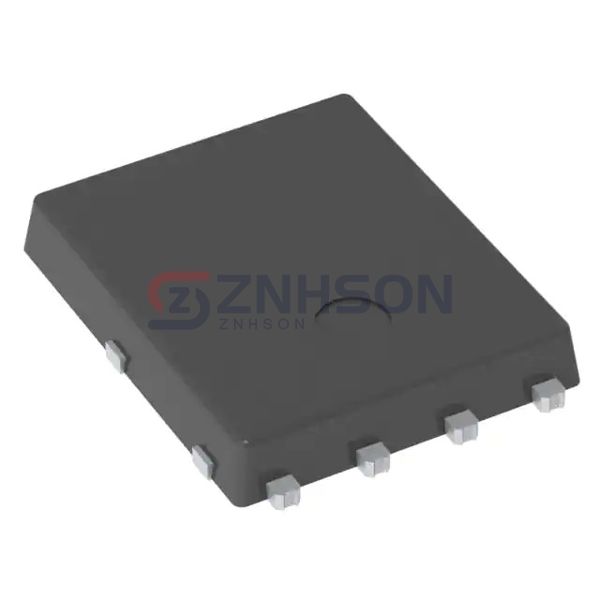

STL140N4F7AG
STMicroelectronics
STMicroelectronics
MOSFET N-CH 40V 120A POWERFLAT
$2.07
Available to order
Reference Price (USD)
3,000+
$0.92460
6,000+
$0.89424
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your circuit performance with STL140N4F7AG, a premium Transistors - FETs, MOSFETs - Single from STMicroelectronics. As part of the Discrete Semiconductor Products lineup, this MOSFET excels in delivering high-speed switching and low power consumption. Its advanced design reduces heat generation and improves efficiency, suitable for power supplies, motor controls, and LED lighting. Trust STL140N4F7AG for consistent quality and long-lasting performance. For bulk orders or custom specifications, reach out to our sales team today!
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 40 V
- Current - Continuous Drain (Id) @ 25°C: 120A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 2.5mOhm @ 16A, 10V
- Vgs(th) (Max) @ Id: 4V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 29 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 2300 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 111W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount, Wettable Flank
- Supplier Device Package: PowerFlat™ (5x6)
- Package / Case: 8-PowerVDFN
