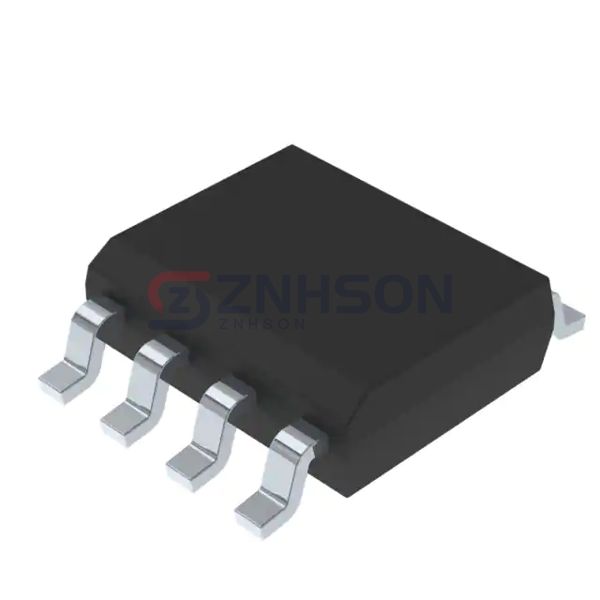

STS5N15F3
STMicroelectronics
STMicroelectronics
MOSFET N-CH 150V 5A 8SO
$2.63
Available to order
Reference Price (USD)
2,500+
$1.32610
5,000+
$1.27699
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover STS5N15F3, a versatile Transistors - FETs, MOSFETs - Single solution from STMicroelectronics, a trusted name in Discrete Semiconductor Products. This MOSFET combines high power density with low on-resistance, perfect for compact and energy-efficient designs. Applications include solar inverters, electric vehicles, and wearable technology. Interested in this innovative component? Send us your inquiry now for more information!
Specifications
- Product Status: Obsolete
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 150 V
- Current - Continuous Drain (Id) @ 25°C: 5A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 57mOhm @ 2.5A, 10V
- Vgs(th) (Max) @ Id: 4V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 29 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 1300 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 2.5W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 8-SOIC
- Package / Case: 8-SOIC (0.154", 3.90mm Width)
Related Products
onsemi
2SK3980-TD-E
onsemi
NTMTS001N06CTXG
Infineon Technologies
IPI65R190CFDXKSA2
STMicroelectronics
STU7N65M2
onsemi
NVD3055-150T4G-VF01
STMicroelectronics
STW10NK60Z
Nexperia USA Inc.

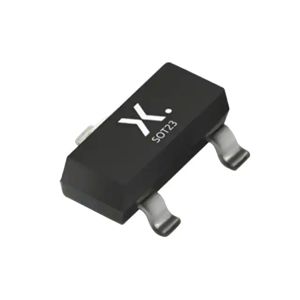

PMV42ENER
Infineon Technologies

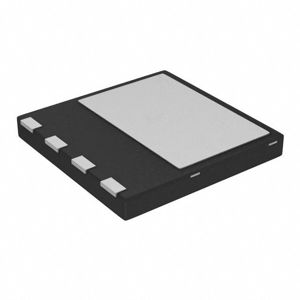

IPL65R210CFDAUMA1
EPC

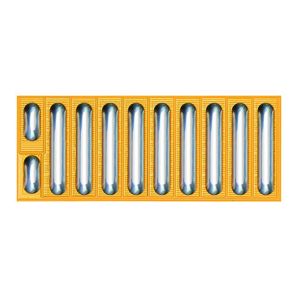

EPC2001C
