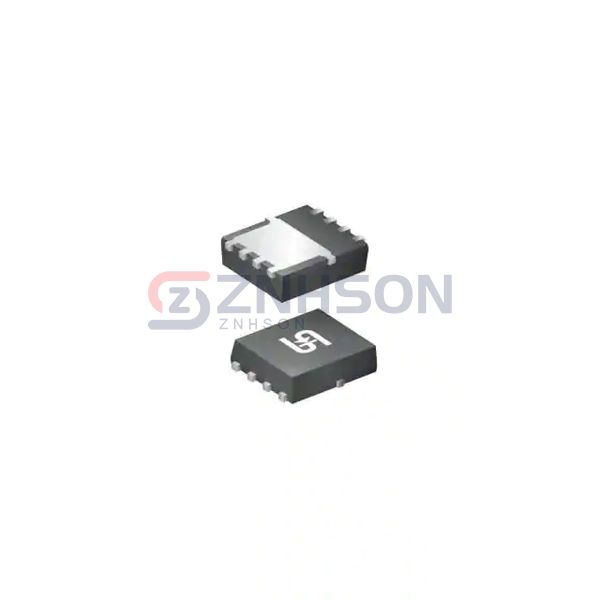

TSM056NH04LCV RGG
Taiwan Semiconductor Corporation
Taiwan Semiconductor Corporation
40V, 54A, SINGLE N-CHANNEL POWER
$3.04
Available to order
Reference Price (USD)
1+
$3.04000
500+
$3.0096
1000+
$2.9792
1500+
$2.9488
2000+
$2.9184
2500+
$2.888
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with TSM056NH04LCV RGG by Taiwan Semiconductor Corporation, a top-tier choice in Discrete Semiconductor Products. Specifically crafted for Transistors - FETs, MOSFETs - Single applications, this product offers superior power handling and energy efficiency. Key features include high voltage tolerance, minimal power loss, and robust durability, making it perfect for switching and amplification tasks. Whether for industrial machinery, renewable energy systems, or portable devices, TSM056NH04LCV RGG ensures reliable operation. Ready to integrate this component into your project? Submit an inquiry now for pricing and availability!
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 40 V
- Current - Continuous Drain (Id) @ 25°C: 16A (Ta), 54A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 5.6mOhm @ 27A, 10V
- Vgs(th) (Max) @ Id: 2.2V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 33 nC @ 10 V
- Vgs (Max): ±16V
- Input Capacitance (Ciss) (Max) @ Vds: 2076 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 34W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 8-PDFN (3.1x3.1)
- Package / Case: 8-PowerWDFN
