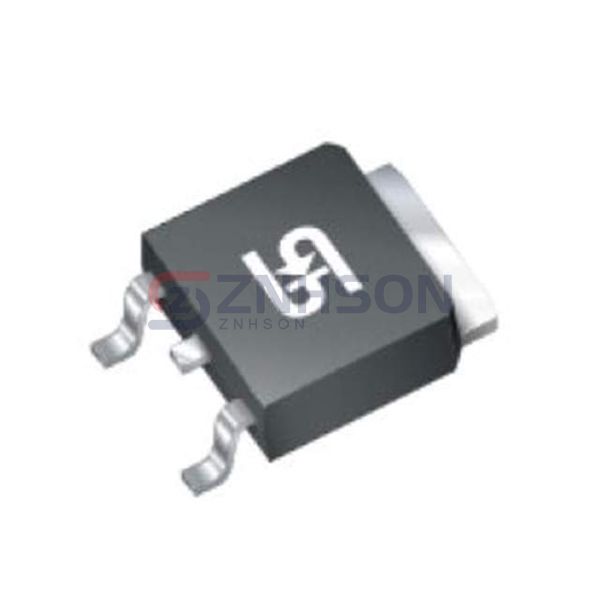

TSM70N1R4CP ROG
Taiwan Semiconductor Corporation
Taiwan Semiconductor Corporation
MOSFET N-CH 700V 3.3A TO252
$0.50
Available to order
Reference Price (USD)
2,500+
$0.46718
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover TSM70N1R4CP ROG, a versatile Transistors - FETs, MOSFETs - Single solution from Taiwan Semiconductor Corporation, a trusted name in Discrete Semiconductor Products. This MOSFET combines high power density with low on-resistance, perfect for compact and energy-efficient designs. Applications include solar inverters, electric vehicles, and wearable technology. Interested in this innovative component? Send us your inquiry now for more information!
Specifications
- Product Status: Not For New Designs
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 700 V
- Current - Continuous Drain (Id) @ 25°C: 3.3A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 1.4Ohm @ 1.2A, 10V
- Vgs(th) (Max) @ Id: 4V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 7.7 nC @ 10 V
- Vgs (Max): ±30V
- Input Capacitance (Ciss) (Max) @ Vds: 370 pF @ 100 V
- FET Feature: -
- Power Dissipation (Max): 38W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: TO-252, (D-Pak)
- Package / Case: TO-252-3, DPak (2 Leads + Tab), SC-63
Related Products
Nexperia USA Inc.
BUK7S2R5-40HJ
onsemi
NTMT190N65S3H
onsemi
NTD65N03RT4G
Toshiba Semiconductor and Storage

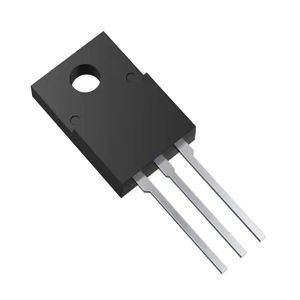

TK7A60W,S4VX
Vishay Siliconix

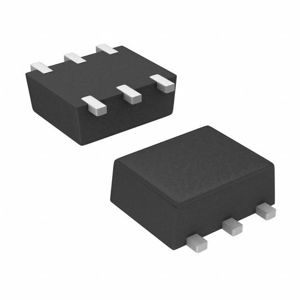

SI1070X-T1-GE3
Diotec Semiconductor

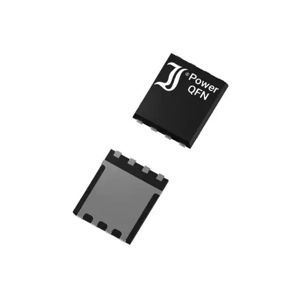

DI040P04PT-AQ
STMicroelectronics
STB80NF03L-04T4
Nexperia USA Inc.

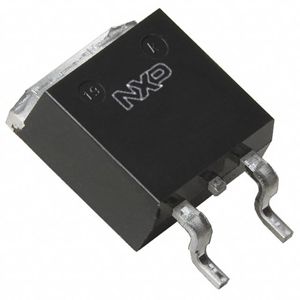

BUK662R4-40C,118
