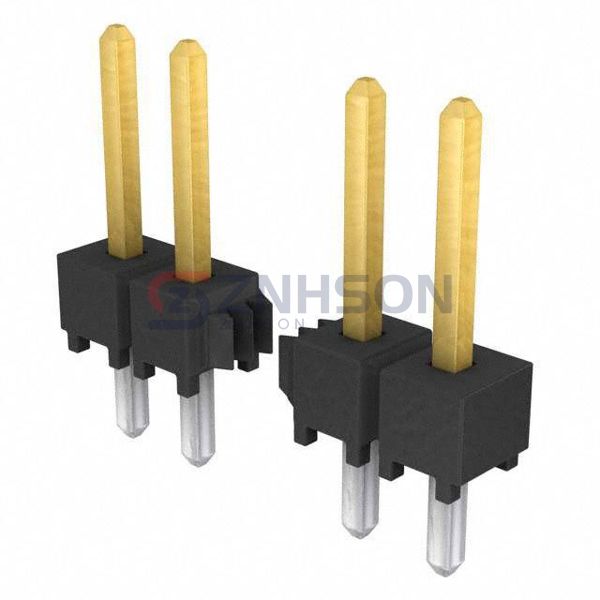

TSW-123-07-L-S
Samtec Inc.
Samtec Inc.
CONN HEADER VERT 23POS 2.54MM
$1.92
Available to order
Reference Price (USD)
1+
$1.74000
10+
$1.58200
25+
$1.48560
50+
$1.42080
100+
$1.35630
250+
$1.22708
500+
$1.13022
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Boost your project's efficiency with TSW-123-07-L-S Samtec Inc. Rectangular Connectors - Headers, Male Pins. These connectors ensure low insertion force, high mating cycles, and EMI shielding for superior performance. Ideal for medical equipment, robotics, and telecommunications. Need a quote? Contact us today and let s discuss your requirements!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 23
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.100" (2.54mm)
- Overall Contact Length: 0.430" (10.92mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
Amphenol Sine Systems Corp
ATM15-12PA-BM01
Sullins Connector Solutions
PEC11SADN
Sullins Connector Solutions
PBC35SFDN
TE Connectivity AMP Connectors
1-1744037-2
Sullins Connector Solutions
PEC35SFAN
Hirose Electric Co Ltd
DF3E-2P-2V(24)
Mill-Max Manufacturing Corp.

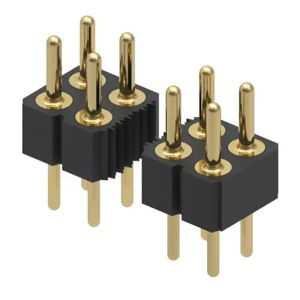

802-10-024-10-002000
Samtec Inc.

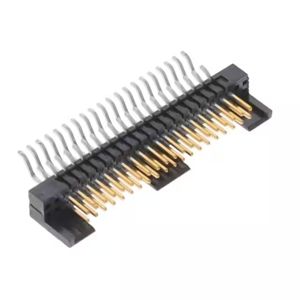

FSH-120-04-F-DH
