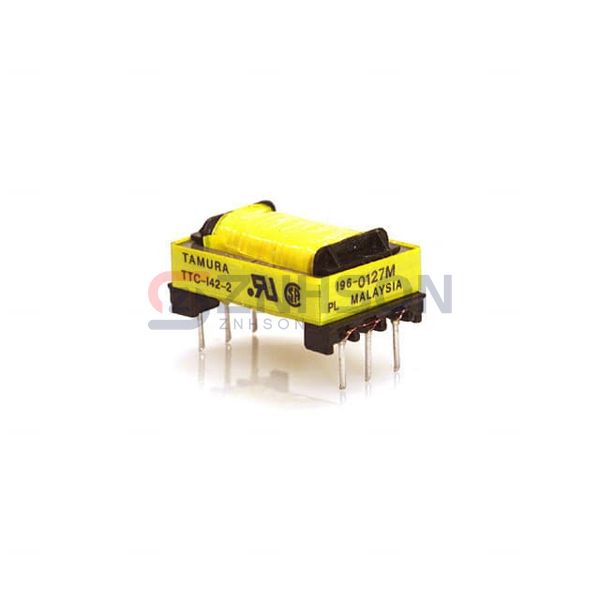

TTC-142-2
Tamura
Tamura
TRANSF TELE COUP 600 OHM 90MADC
$4.42
Available to order
Reference Price (USD)
360+
$4.36450
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your audio setups with Tamura TTC-142-2 Audio Transformers, crafted for precision and high fidelity. Suitable for both professional and hobbyist applications, these transformers deliver excellent frequency response and isolation. Depend on Tamura for quality that exceeds expectations. Submit your inquiry now and take the first step toward superior audio performance.
Specifications
- Product Status: Active
- Turns Ratio - Primary:Secondary: 1:1.04
- Impedance - Primary (Ohms): 600
- Impedance - Secondary (Ohms): 600
- DC Resistance (DCR) - Primary: 75Ohm
- DC Resistance (DCR) - Secondary: 95Ohm
- Transformer Type: Data/Voice Coupling
- Frequency Range: 300Hz ~ 3.5kHz
- Frequency Response: -2.5dB ~ 0.3dB
- Voltage - Isolation: 1500VRMS @ 1 Minute
- Insertion Loss: 1.9dB Max @ 1.8kHz
- Return Loss: 14dB Min @ 1.8kHz
- Power Level: -45dB ~ 10dB
- Operating Temperature: -
- Approval Agency: CSA-C22.2 No. 66-M1988, UL1459
- Mounting Type: Through Hole
- Size / Dimension: 0.799" L x 1.201" W (20.30mm x 30.50mm)
- Height - Seated (Max): 0.500" (12.70mm)
- Termination Style: PC Pin
