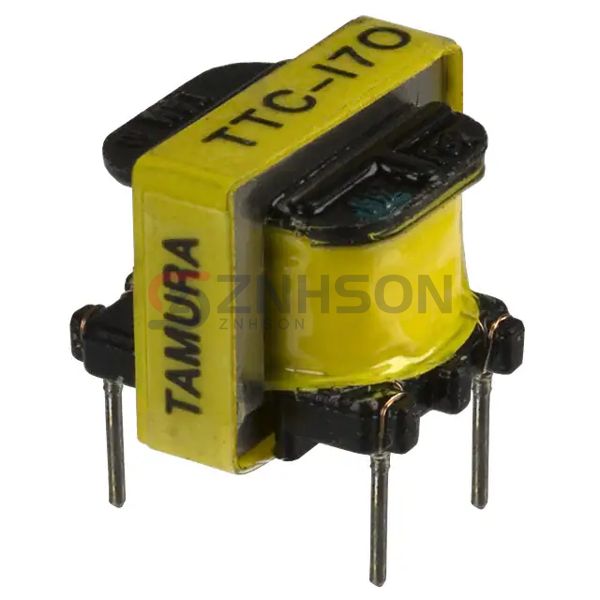

TTC-170
Tamura
Tamura
TRANSF TELE COUP 600:600 0MADC
$7.37
Available to order
Reference Price (USD)
1+
$7.31000
10+
$5.68000
25+
$5.52600
50+
$4.75860
100+
$4.54360
250+
$4.45152
500+
$4.37476
1,800+
$4.29800
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Boost your audio projects with Tamura TTC-170 Audio Transformers, known for their robust construction and exceptional sound quality. These transformers are ideal for a wide range of applications, from PA systems to musical instruments, providing reliable and distortion-free performance. Count on Tamura for excellence in every component. Contact us now to discuss your requirements.
Specifications
- Product Status: Active
- Turns Ratio - Primary:Secondary: 1:1
- Impedance - Primary (Ohms): 600
- Impedance - Secondary (Ohms): 600
- DC Resistance (DCR) - Primary: 47Ohm
- DC Resistance (DCR) - Secondary: 61Ohm
- Transformer Type: Data/Voice Coupling
- Frequency Range: 300Hz ~ 3.5kHz
- Frequency Response: ±0.5dB
- Voltage - Isolation: 1500VRMS @ 1 Minute
- Insertion Loss: 1.5dB Max @ 1kHz
- Return Loss: -
- Power Level: -
- Operating Temperature: 0°C ~ 70°C
- Approval Agency: CSA-C22.2 No. 66-M1988, UL1459
- Mounting Type: Through Hole
- Size / Dimension: 0.528" L x 0.512" W (13.40mm x 13.00mm)
- Height - Seated (Max): 0.421" (10.70mm)
- Termination Style: PC Pin
