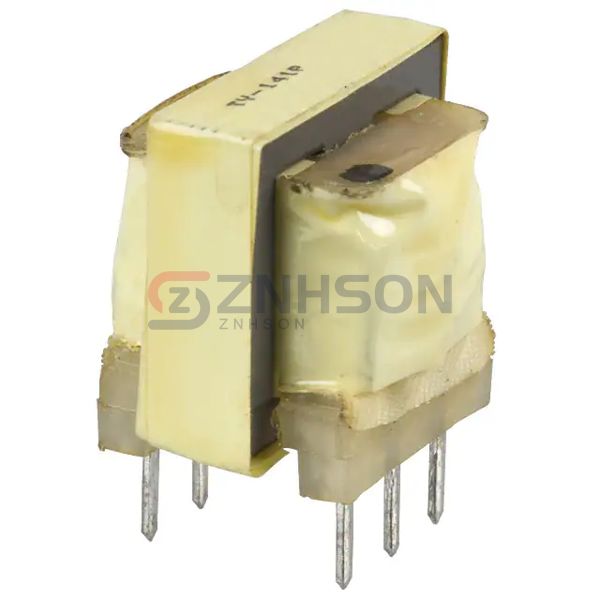

TY-141P-B
Triad Magnetics
Triad Magnetics
TRANSF 10K AUDIO CTAP/10K CTAP
$3.65
Available to order
Reference Price (USD)
1,200+
$3.25119
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover high-quality Triad Magnetics TY-141P-B Audio Transformers, designed to deliver exceptional sound clarity and performance. These transformers are perfect for audio applications, ensuring signal integrity and noise reduction. Whether you're working on professional audio equipment or consumer electronics, our Audio Transformers provide reliable performance. Contact us today for a quote and elevate your audio projects with Triad Magnetics excellence.
Specifications
- Product Status: Active
- Turns Ratio - Primary:Secondary: 1:1
- Impedance - Primary (Ohms): 10kCT
- Impedance - Secondary (Ohms): 10kCT
- DC Resistance (DCR) - Primary: 820Ohm
- DC Resistance (DCR) - Secondary: 1.07kOhm
- Transformer Type: Data/Voice Coupling
- Frequency Range: 200Hz ~ 15kHz
- Frequency Response: ±2dB
- Voltage - Isolation: 1500V
- Insertion Loss: 1.5dB @ 1kHz
- Return Loss: 26dB
- Power Level: -
- Operating Temperature: -20°C ~ 85°C
- Approval Agency: -
- Mounting Type: Through Hole
- Size / Dimension: 0.812" L x 0.700" W (20.62mm x 17.78mm)
- Height - Seated (Max): 0.740" (18.80mm)
- Termination Style: PC Pin
