TY-250P
Triad Magnetics
Triad Magnetics

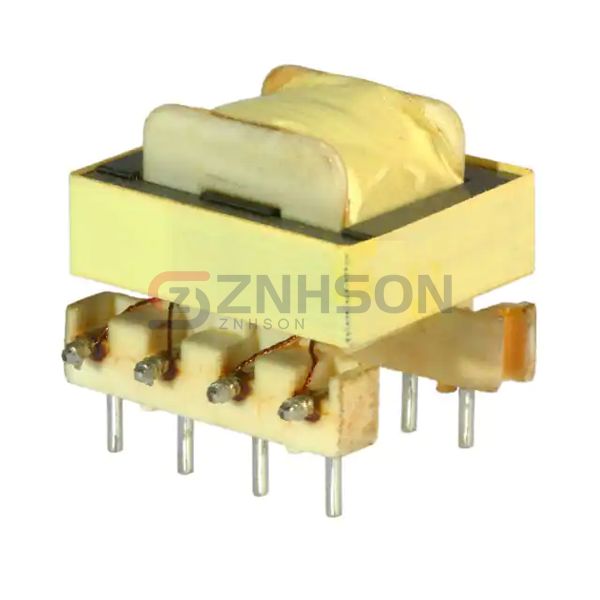

PC MOUNT AUDIO TRANSFORMER
$6.24
Available to order
Reference Price (USD)
1+
$5.66000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Maximize audio performance with Triad Magnetics TY-250P Audio Transformers, offering industry-leading quality and efficiency. These transformers are perfect for high-end audio equipment, delivering pristine sound reproduction. Choose Triad Magnetics for components that set the standard. Submit your inquiry now and take your audio projects to the next level.
Specifications
- Product Status: Active
- Turns Ratio - Primary:Secondary: 1:1, 2:1
- Impedance - Primary (Ohms): 1kCT
- Impedance - Secondary (Ohms): 1kCT
- DC Resistance (DCR) - Primary: 172Ohm
- DC Resistance (DCR) - Secondary: 172Ohm
- Transformer Type: Impedance Matching
- Frequency Range: 20Hz ~ 20kHz
- Frequency Response: ±1dB
- Voltage - Isolation: 1500VAC
- Insertion Loss: 2.8dB Max @ 1kHz
- Return Loss: -
- Power Level: -
- Operating Temperature: -40°C ~ 105°C
- Approval Agency: -
- Mounting Type: Through Hole
- Size / Dimension: 0.800" L x 0.770" W (20.32mm x 19.56mm)
- Height - Seated (Max): 0.700" (17.78mm)
- Termination Style: PC Pin
