UC2950T
Texas Instruments
Texas Instruments
SWITCH 1/2 BRIDGE, BI-POLAR
$10.88
Available to order
Reference Price (USD)
1+
$8.92000
10+
$8.06000
50+
$7.68540
100+
$6.67320
500+
$5.81096
1,000+
$5.06115
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The Texas Instruments UC2950T series offers versatile full/half-bridge driver solutions for modern power electronics. Featuring dual MOSFET gate drivers with independent inputs, these PMICs provide exceptional flexibility in motor control and switched-mode power supply designs. Advanced protection mechanisms include undervoltage lockout and thermal shutdown, while the high-current drive capability ensures efficient switching of power transistors. Suitable for industrial, automotive, and consumer applications. Request technical documentation or samples through our quick inquiry form.
Specifications
- Product Status: Active
- Output Configuration: Half Bridge
- Applications: General Purpose
- Interface: On/Off
- Load Type: Inductive, Capacitive
- Technology: Bipolar
- Rds On (Typ): -
- Current - Output / Channel: 2A
- Current - Peak Output: 4A
- Voltage - Supply: 8V ~ 35V
- Voltage - Load: 8V ~ 35V
- Operating Temperature: -20°C ~ 100°C (TJ)
- Features: 5V Regulated Output
- Fault Protection: Over Temperature
- Mounting Type: Through Hole

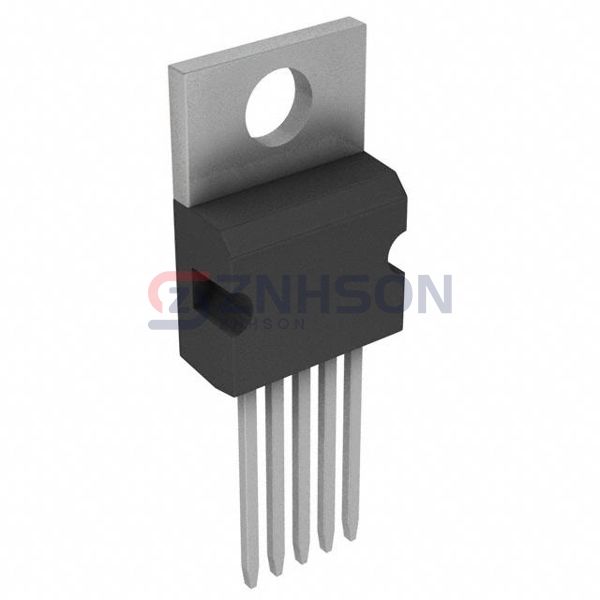

- Package / Case: TO-220-5
- Supplier Device Package: TO-220-5
