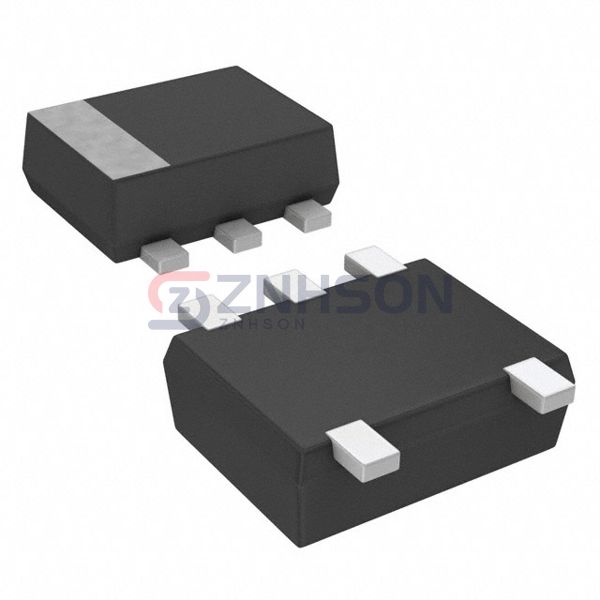

UP0339000L
Panasonic Electronic Components
Panasonic Electronic Components
TRANS PREBIAS NPN/PNP SSMINI5
$0.26
Available to order
Reference Price (USD)
1+
$0.26000
500+
$0.2574
1000+
$0.2548
1500+
$0.2522
2000+
$0.2496
2500+
$0.247
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Panasonic Electronic Components's UP0339000L represents the next generation of Pre-Biased Bipolar Transistor Arrays, combining efficiency with compact design. These surface-mount compatible components feature integrated bias networks that reduce part count while improving system reliability. Ideal applications encompass power management, sensor interfaces, and digital circuit amplification in medical equipment, robotics, and smart home systems. Notable advantages include consistent hFE matching, reduced board space requirements, and simplified inventory management. As a leading supplier of discrete semiconductors, Panasonic Electronic Components guarantees quality and performance. Get competitive quotes and lead times inquire about UP0339000L now!
Specifications
- Product Status: Obsolete
- Transistor Type: 1 NPN, 1 PNP - Pre-Biased (Dual)
- Current - Collector (Ic) (Max): 100mA
- Voltage - Collector Emitter Breakdown (Max): 50V
- Resistor - Base (R1): 47kOhms, 10kOhms
- Resistor - Emitter Base (R2): 47kOhms
- DC Current Gain (hFE) (Min) @ Ic, Vce: 80 @ 5mA, 10V
- Vce Saturation (Max) @ Ib, Ic: 250mV @ 300µA, 10mA
- Current - Collector Cutoff (Max): 500nA
- Frequency - Transition: 150MHz, 80MHz
- Power - Max: 125mW
- Mounting Type: Surface Mount
- Package / Case: SOT-665
- Supplier Device Package: SSMini5-F2
