ZXMN3B01FTC
Diodes Incorporated
Diodes Incorporated

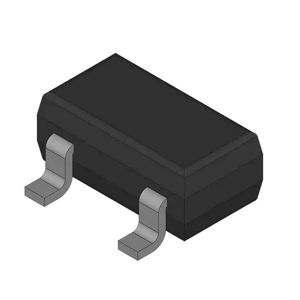

MOSFET N-CH 30V 1.7A SOT23
$0.19
Available to order
Reference Price (USD)
1+
$0.19125
500+
$0.1893375
1000+
$0.187425
1500+
$0.1855125
2000+
$0.1836
2500+
$0.1816875
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
ZXMN3B01FTC by Diodes Incorporated is a standout in the Discrete Semiconductor Products market, specifically for Transistors - FETs, MOSFETs - Single applications. Engineered for precision, this MOSFET offers exceptional gate control, low leakage current, and high power density. Ideal for use in audio amplifiers, DC-DC converters, and battery management systems, ZXMN3B01FTC ensures top-tier performance. Don t miss out on this versatile component request a sample or quote now!
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 30 V
- Current - Continuous Drain (Id) @ 25°C: 1.7A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 2.5V, 4.5V
- Rds On (Max) @ Id, Vgs: 150mOhm @ 1.7A, 4.5V
- Vgs(th) (Max) @ Id: 700mV @ 250µA (Min)
- Gate Charge (Qg) (Max) @ Vgs: 2.93 nC @ 4.5 V
- Vgs (Max): ±12V
- Input Capacitance (Ciss) (Max) @ Vds: 258 pF @ 15 V
- FET Feature: -
- Power Dissipation (Max): 625mW (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: SOT-23-3
- Package / Case: TO-236-3, SC-59, SOT-23-3
Related Products
Infineon Technologies
BSZ097N04LSGATMA1
IXYS
IXFP8N85X
IXYS
IXFA12N65X2
onsemi
FDP045N10A-F102
NXP Semiconductors
PHK31NQ03LT,518
Panjit International Inc.
PJA3414_R1_00001
Vishay Siliconix
IRF840ASTRRPBF
Infineon Technologies
IPI60R385CP
onsemi

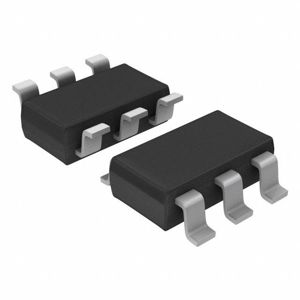

NTGS3441T1G
