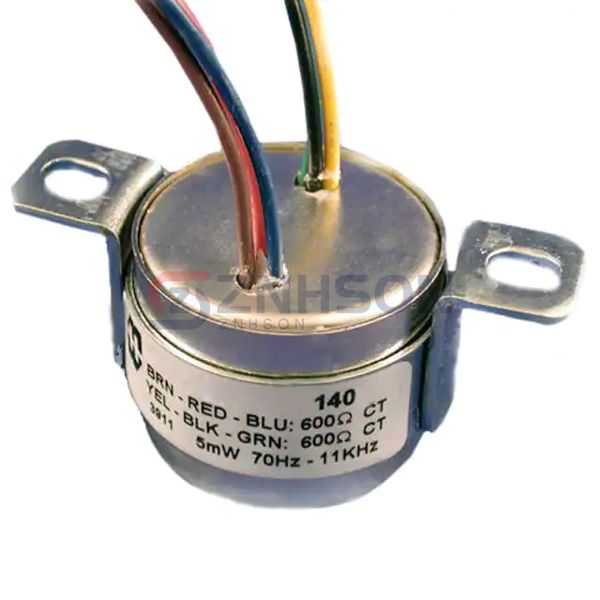

140PEX
Hammond Manufacturing
Hammond Manufacturing
TRANSFORMER AUDIO
$87.07
Available to order
Reference Price (USD)
1+
$72.38000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your audio systems with Hammond Manufacturing 140PEX Audio Transformers, engineered for superior sound quality and durability. Ideal for amplifiers, mixers, and other audio devices, these transformers ensure minimal distortion and maximum efficiency. Trust Hammond Manufacturing for top-tier components that meet your audio needs. Request a quote now and experience the difference in your sound applications.
Specifications
- Product Status: Active
- Turns Ratio - Primary:Secondary: 1:1, 1:2, 1:4
- Impedance - Primary (Ohms): 600, 150/150
- Impedance - Secondary (Ohms): 2.4k, 600/600
- DC Resistance (DCR) - Primary: 58Ohm
- DC Resistance (DCR) - Secondary: 190Ohm
- Transformer Type: -
- Frequency Range: 20Hz ~ 20kHz
- Frequency Response: ±1dB
- Voltage - Isolation: 500Vrms
- Insertion Loss: 0.8dB Typ
- Return Loss: 30dB Typ
- Power Level: 10dB
- Operating Temperature: -
- Approval Agency: -
- Mounting Type: Chassis Mount
- Size / Dimension: 1.250" Dia (31.75mm)
- Height - Seated (Max): 1.000" (25.40mm)
- Termination Style: Screw Terminal
