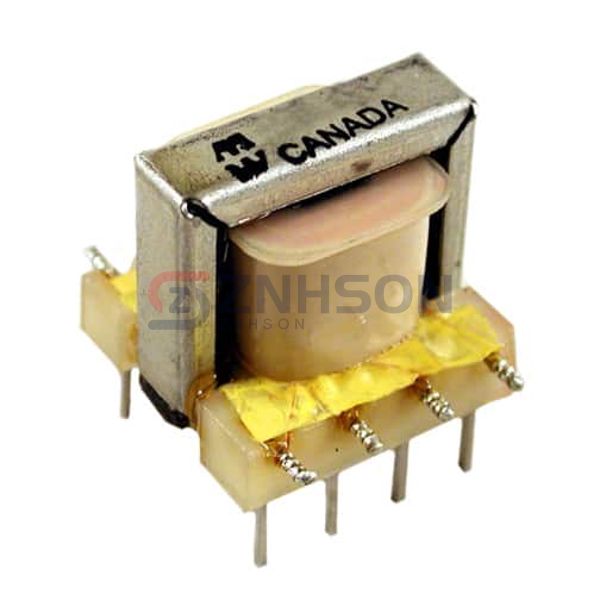

148T
Hammond Manufacturing
Hammond Manufacturing
TRANSFORMER AUDIO 500CT/3.2 IMP
$24.45
Available to order
Reference Price (USD)
1+
$20.94000
10+
$18.48000
25+
$17.86400
50+
$16.01600
100+
$15.40000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your audio systems with Hammond Manufacturing 148T Audio Transformers, engineered for superior sound quality and durability. Ideal for amplifiers, mixers, and other audio devices, these transformers ensure minimal distortion and maximum efficiency. Trust Hammond Manufacturing for top-tier components that meet your audio needs. Request a quote now and experience the difference in your sound applications.
Specifications
- Product Status: Active
- Turns Ratio - Primary:Secondary: -
- Impedance - Primary (Ohms): 500CT
- Impedance - Secondary (Ohms): 3.2
- DC Resistance (DCR) - Primary: 41Ohm
- DC Resistance (DCR) - Secondary: 340mOhm
- Transformer Type: Economical Open Type
- Frequency Range: 200Hz ~ 15kHz
- Frequency Response: ±1dB
- Voltage - Isolation: -
- Insertion Loss: 0.5dB
- Return Loss: -
- Power Level: 300mW
- Operating Temperature: -
- Approval Agency: -
- Mounting Type: Through Hole
- Size / Dimension: 0.820" L x 0.680" W (20.83mm x 17.27mm)
- Height - Seated (Max): 0.690" (17.53mm)
- Termination Style: PC Pin
