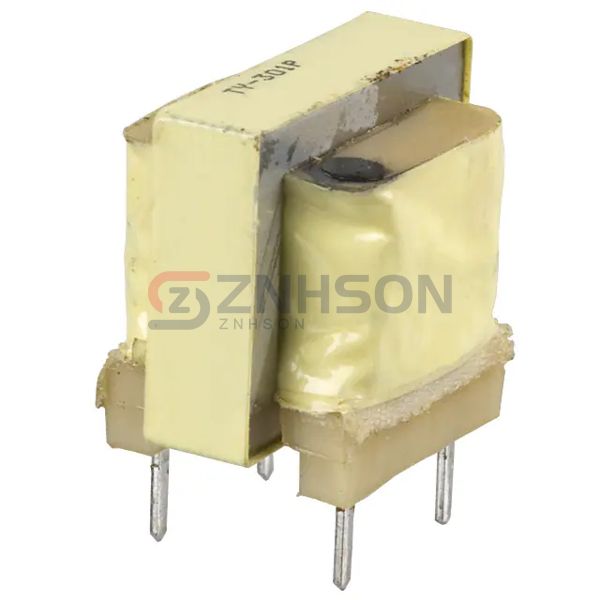

TY-301P-B
Triad Magnetics
Triad Magnetics
TRANSF 900 OHM SEC. 0MA DC TEL
$3.38
Available to order
Reference Price (USD)
1,200+
$3.00223
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Transform your audio applications with Triad Magnetics TY-301P-B Audio Transformers, featuring cutting-edge technology and reliable performance. These transformers are essential for maintaining sound quality in various setups, from home theaters to professional studios. Trust Triad Magnetics to deliver components that make a difference. Request a quote now and enhance your audio systems.
Specifications
- Product Status: Active
- Turns Ratio - Primary:Secondary: 1:1.27
- Impedance - Primary (Ohms): 600
- Impedance - Secondary (Ohms): 900
- DC Resistance (DCR) - Primary: 36Ohm
- DC Resistance (DCR) - Secondary: 76Ohm
- Transformer Type: Data/Voice Coupling
- Frequency Range: 300Hz ~ 3.5kHz
- Frequency Response: ±0.5dB
- Voltage - Isolation: 1500VAC
- Insertion Loss: 1dB Typ
- Return Loss: 26dB Typ
- Power Level: -45dB ~ 7dB
- Operating Temperature: -20°C ~ 85°C
- Approval Agency: -
- Mounting Type: Through Hole
- Size / Dimension: 0.812" L x 0.700" W (20.62mm x 17.78mm)
- Height - Seated (Max): 0.740" (18.80mm)
- Termination Style: PC Pin
