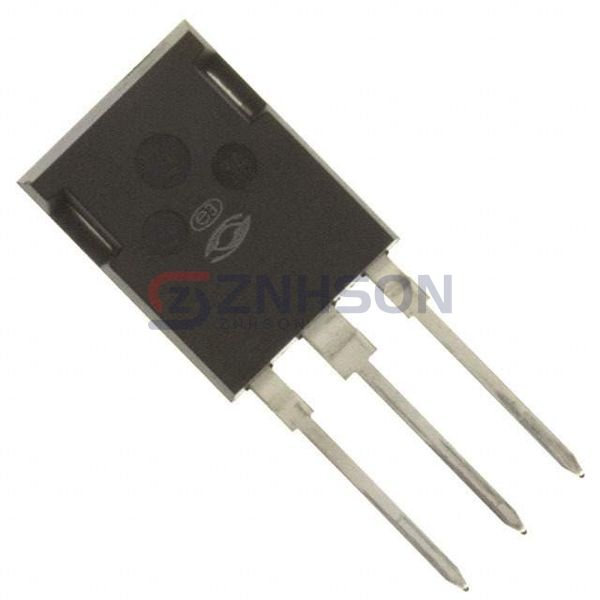

APT45GP120B2DQ2G
Microchip Technology
Microchip Technology
IGBT 1200V 113A 625W TMAX
$21.80
Available to order
Reference Price (USD)
1+
$22.11000
10+
$20.44800
25+
$18.78960
100+
$17.46330
250+
$16.02644
500+
$15.25276
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Maximize energy efficiency with APT45GP120B2DQ2G Single IGBTs by Microchip Technology, a trusted name in discrete semiconductors. Suitable for solar inverters, motor controllers, and more, these transistors feature low conduction loss and high switching frequency. Their robust design ensures long-term performance even in harsh environments. Choose APT45GP120B2DQ2G for your next project and experience the Microchip Technology difference. Submit your inquiry today for expert assistance!
Specifications
- Product Status: Active
- IGBT Type: PT
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 113 A
- Current - Collector Pulsed (Icm): 170 A
- Vce(on) (Max) @ Vge, Ic: 3.9V @ 15V, 45A
- Power - Max: 625 W
- Switching Energy: 900µJ (on), 905µJ (off)
- Input Type: Standard
- Gate Charge: 185 nC
- Td (on/off) @ 25°C: 18ns/100ns
- Test Condition: 600V, 45A, 5Ohm, 15V
- Reverse Recovery Time (trr): -
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-247-3 Variant
- Supplier Device Package: -
