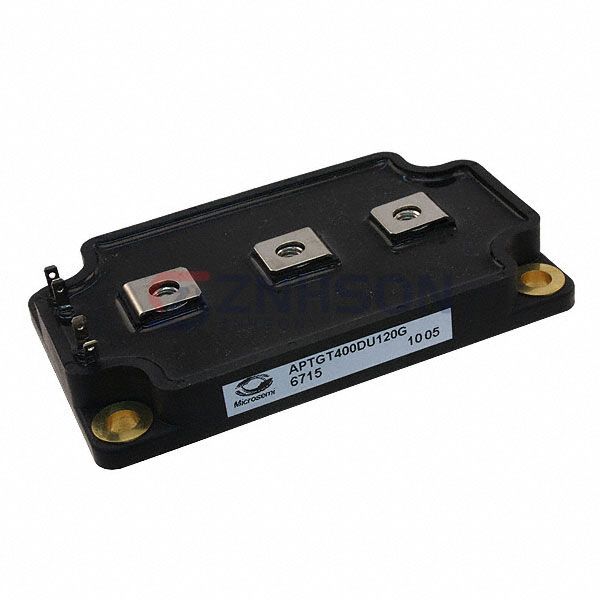

APTGT400DU120G
Microchip Technology
Microchip Technology
IGBT MODULE 1200V 560A 1785W SP6
$373.36
Available to order
Reference Price (USD)
100+
$186.66100
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The APTGT400DU120G IGBT Module from Microchip Technology delivers superior performance for demanding power control tasks. With features such as short-circuit protection and high-frequency operation, it's suited for solar inverters, industrial automation, and more. Trust Microchip Technology for cutting-edge Discrete Semiconductor Products. Request a sample now!
Specifications
- Product Status: Active
- IGBT Type: Trench Field Stop
- Configuration: Dual, Common Source
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 560 A
- Power - Max: 1785 W
- Vce(on) (Max) @ Vge, Ic: 2.1V @ 15V, 400A
- Current - Collector Cutoff (Max): 750 µA
- Input Capacitance (Cies) @ Vce: 28 nF @ 25 V
- Input: Standard
- NTC Thermistor: No
- Operating Temperature: -40°C ~ 150°C (TJ)
- Mounting Type: Chassis Mount
- Package / Case: SP6
- Supplier Device Package: SP6
