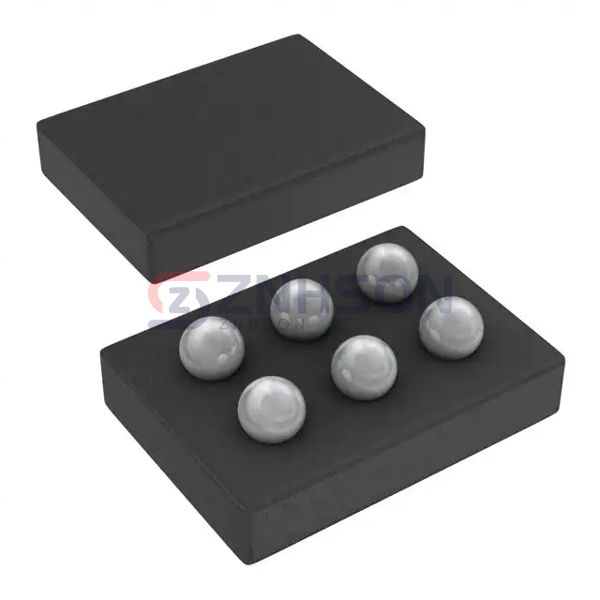

CSD25304W1015T
Texas Instruments
Texas Instruments
MOSFET P-CH 20V 3A 6DSBGA
$1.17
Available to order
Reference Price (USD)
250+
$0.37364
500+
$0.31726
750+
$0.27496
1,250+
$0.24675
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Boost your electronic applications with CSD25304W1015T, a reliable Transistors - FETs, MOSFETs - Single by Texas Instruments. As a leader in Discrete Semiconductor Products, we offer components with low gate charge, high breakdown voltage, and excellent switching performance. Whether for aerospace, robotics, or energy systems, CSD25304W1015T meets the highest standards. Contact our team today for expert advice and competitive pricing!
Specifications
- Product Status: Active
- FET Type: P-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 20 V
- Current - Continuous Drain (Id) @ 25°C: 3A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 1.8V, 4.5V
- Rds On (Max) @ Id, Vgs: 32.5mOhm @ 1.5A, 4.5V
- Vgs(th) (Max) @ Id: 1.15V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 4.4 nC @ 4.5 V
- Vgs (Max): ±8V
- Input Capacitance (Ciss) (Max) @ Vds: 595 pF @ 10 V
- FET Feature: -
- Power Dissipation (Max): 750mW (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 6-DSBGA (1x1.5)
- Package / Case: 6-UFBGA, DSBGA
