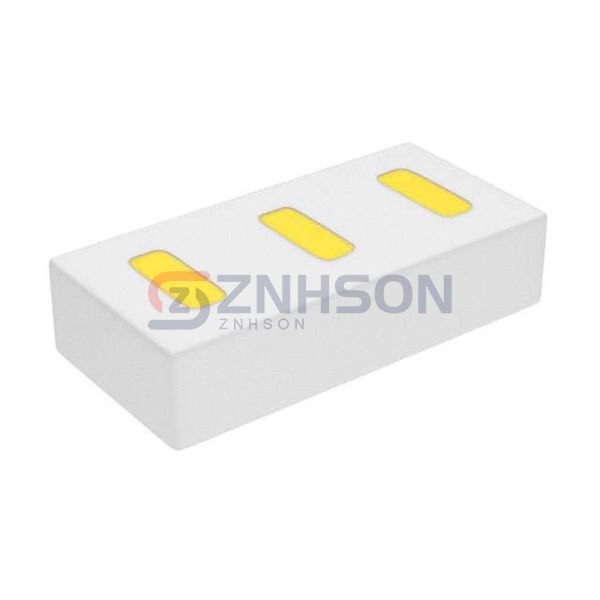

CSD25485F5
Texas Instruments
Texas Instruments
MOSFET P-CH 20V 3.2A 3PICOSTAR
$0.56
Available to order
Reference Price (USD)
3,000+
$0.14520
6,000+
$0.13640
15,000+
$0.12760
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover high-performance CSD25485F5 from Texas Instruments, a leading solution in the Discrete Semiconductor Products category. Our Transistors - FETs, MOSFETs - Single are designed for efficiency and reliability, making them ideal for various electronic applications. These components feature low on-resistance, fast switching speeds, and excellent thermal performance, ensuring optimal functionality in power management and amplification circuits. Commonly used in automotive, industrial, and consumer electronics, CSD25485F5 delivers consistent performance under demanding conditions. Interested in learning more? Contact us today for a detailed quote and technical support!
Specifications
- Product Status: Active
- FET Type: P-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 20 V
- Current - Continuous Drain (Id) @ 25°C: 3.2A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 1.8V, 8V
- Rds On (Max) @ Id, Vgs: 35mOhm @ 900mA, 8V
- Vgs(th) (Max) @ Id: 1.3V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 3.5 nC @ 4.5 V
- Vgs (Max): -12V
- Input Capacitance (Ciss) (Max) @ Vds: 533 pF @ 10 V
- FET Feature: -
- Power Dissipation (Max): 500mW (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 3-PICOSTAR
- Package / Case: 3-XFDFN
Related Products
Infineon Technologies
IPB025N10N3GATMA1
STMicroelectronics
STF11N50M2
onsemi
FCPF600N65S3R0L-F154
Diodes Incorporated

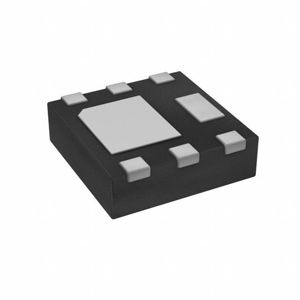

DMT6016LFDF-13
onsemi
NVMFS6H836NLT1G
GeneSiC Semiconductor

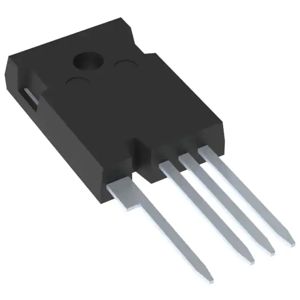

G3R75MT12K
STMicroelectronics
SCTW40N120G2VAG
onsemi

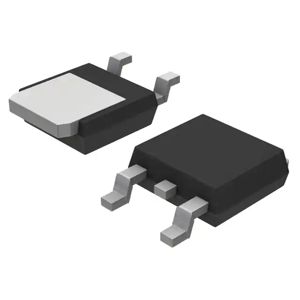

NVD5C446NT4G
