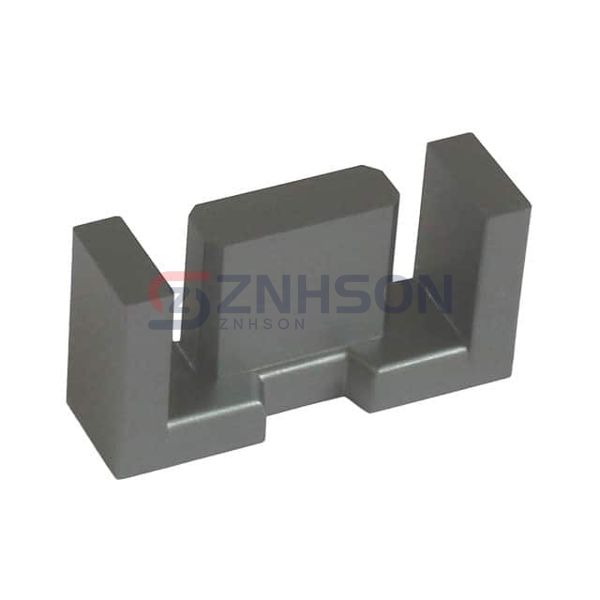

EFD15/8/5-3F46-S
Ferroxcube
Ferroxcube
FERRITE CORE 2PC SET
$2.17
Available to order
Reference Price (USD)
1+
$1.85000
10+
$1.59400
50+
$1.14800
100+
$1.02040
250+
$0.95668
500+
$0.89290
1,000+
$0.81955
5,000+
$0.79723
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Maximize your device's performance with Ferroxcube EFD15/8/5-3F46-S Ferrite Cores, the go-to solution for effective electromagnetic interference suppression. These cores are critical in designing efficient power converters, inductors, and high-frequency transformers. With excellent temperature stability and low hysteresis loss, they are perfect for aerospace, defense, and telecommunications applications. Get in touch with us to discuss how our Ferrite Cores can meet your project needs!
Specifications
- Product Status: Active
- Core Type: EFD
- Supplier Device Package: EFD 15 x 8 x 5
- Material: 3F46
- Diameter: -
- Inductance Factor (Al): -
- Tolerance: ±25%
- Gap: Ungapped
- Effective Permeability (µe): 667
- Initial Permeability (µi): -
- Core Factor (ΣI/A) mm-1: 2.27
- Effective Length (le) mm: 34
- Effective Area (Ae) mm²: 15
- Minimum Core Cross Section (Amin) mm²: 12.2
- Effective Magnetic Volume (Ve) mm³: 510
- Finish: Uncoated
- Height: 0.295" (7.50mm)
- Length: 0.591" (15.00mm)
- Width: 0.183" (4.65mm)
