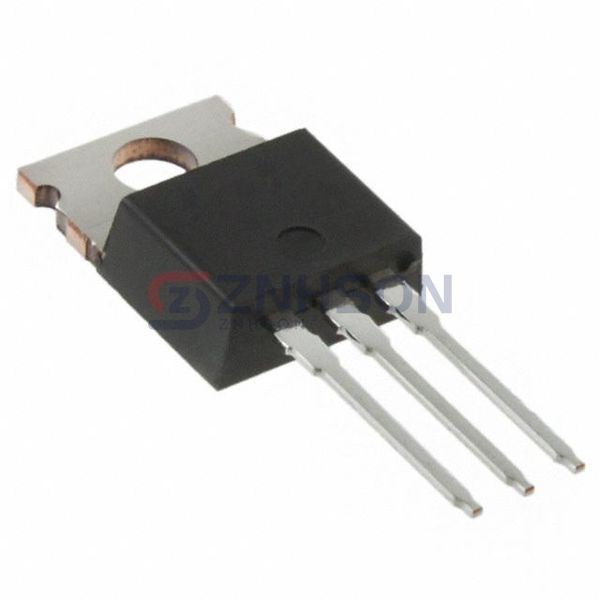

IRF520PBF
Vishay Siliconix
Vishay Siliconix
MOSFET N-CH 100V 9.2A TO220AB
$1.23
Available to order
Reference Price (USD)
1+
$1.03000
50+
$0.82140
100+
$0.71880
500+
$0.55740
1,000+
$0.44006
2,500+
$0.41072
5,000+
$0.39018
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
IRF520PBF by Vishay Siliconix is a standout in the Discrete Semiconductor Products market, specifically for Transistors - FETs, MOSFETs - Single applications. Engineered for precision, this MOSFET offers exceptional gate control, low leakage current, and high power density. Ideal for use in audio amplifiers, DC-DC converters, and battery management systems, IRF520PBF ensures top-tier performance. Don t miss out on this versatile component request a sample or quote now!
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 100 V
- Current - Continuous Drain (Id) @ 25°C: 9.2A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 270mOhm @ 5.5A, 10V
- Vgs(th) (Max) @ Id: 4V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 16 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 360 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 60W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Through Hole
- Supplier Device Package: TO-220AB
- Package / Case: TO-220-3
