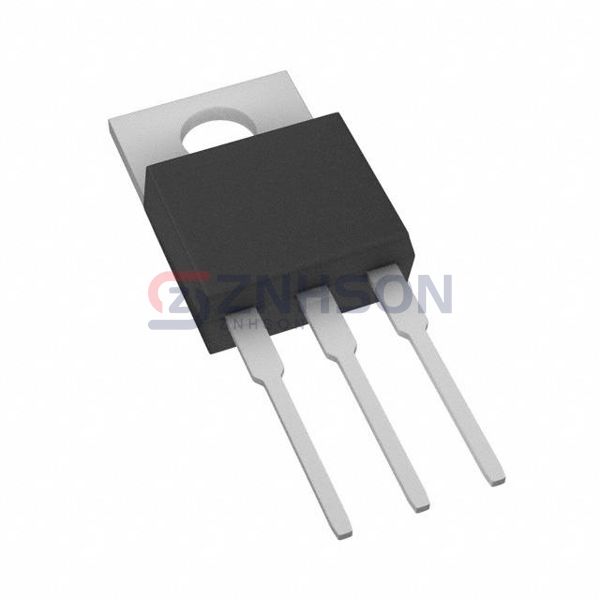

IRF9540PBF-BE3
Vishay Siliconix
Vishay Siliconix
MOSFET P-CH 100V 19A TO220AB
$2.25
Available to order
Reference Price (USD)
1+
$2.25000
500+
$2.2275
1000+
$2.205
1500+
$2.1825
2000+
$2.16
2500+
$2.1375
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover high-performance IRF9540PBF-BE3 from Vishay Siliconix, a leading solution in the Discrete Semiconductor Products category. Our Transistors - FETs, MOSFETs - Single are designed for efficiency and reliability, making them ideal for various electronic applications. These components feature low on-resistance, fast switching speeds, and excellent thermal performance, ensuring optimal functionality in power management and amplification circuits. Commonly used in automotive, industrial, and consumer electronics, IRF9540PBF-BE3 delivers consistent performance under demanding conditions. Interested in learning more? Contact us today for a detailed quote and technical support!
Specifications
- Product Status: Active
- FET Type: P-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 100 V
- Current - Continuous Drain (Id) @ 25°C: 19A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): -
- Rds On (Max) @ Id, Vgs: 200mOhm @ 11A, 10V
- Vgs(th) (Max) @ Id: 4V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 61 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 1400 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 150W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Through Hole
- Supplier Device Package: TO-220AB
- Package / Case: TO-220-3
Related Products
Nexperia USA Inc.
NX3008PBKW,115
Panasonic Electronic Components
FK8V03040L
Infineon Technologies
IPT65R105G7XTMA1
Vishay Siliconix

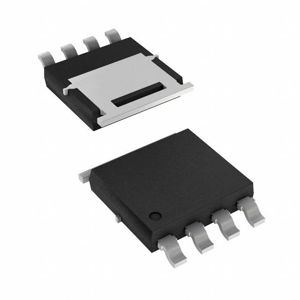

SQJ868EP-T1_GE3
Infineon Technologies
BSC040N08NS5ATMA1
onsemi

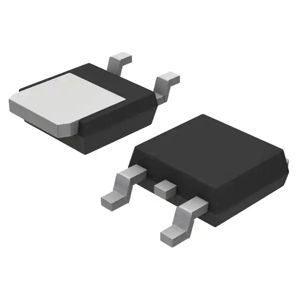

FDD6637
