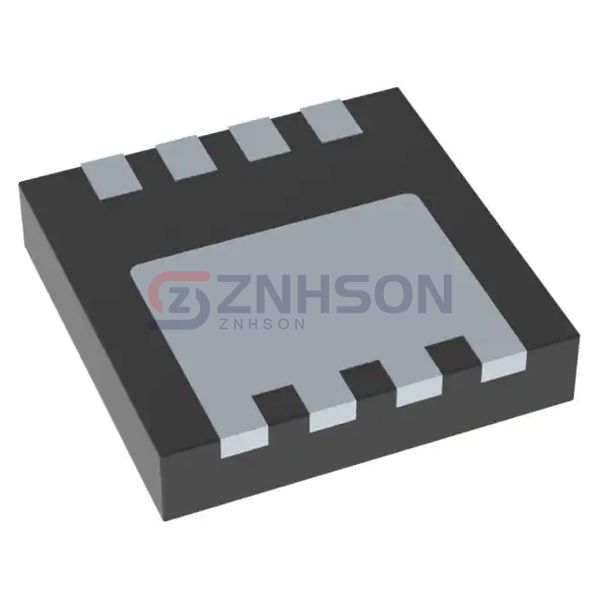

NTTFS2D1N04HLTWG
onsemi
onsemi
MOSFET N-CH 40V 24A/150A 8PQFN
$2.27
Available to order
Reference Price (USD)
1+
$2.27000
500+
$2.2473
1000+
$2.2246
1500+
$2.2019
2000+
$2.1792
2500+
$2.1565
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your circuit performance with NTTFS2D1N04HLTWG, a premium Transistors - FETs, MOSFETs - Single from onsemi. As part of the Discrete Semiconductor Products lineup, this MOSFET excels in delivering high-speed switching and low power consumption. Its advanced design reduces heat generation and improves efficiency, suitable for power supplies, motor controls, and LED lighting. Trust NTTFS2D1N04HLTWG for consistent quality and long-lasting performance. For bulk orders or custom specifications, reach out to our sales team today!
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 40 V
- Current - Continuous Drain (Id) @ 25°C: 24A (Ta), 150A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 2.1mOhm @ 23A, 10V
- Vgs(th) (Max) @ Id: 2V @ 120µA
- Gate Charge (Qg) (Max) @ Vgs: 43.6 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 2745 pF @ 20 V
- FET Feature: -
- Power Dissipation (Max): 2.2W (Ta), 83W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 8-PQFN (3.3x3.3)
- Package / Case: 8-PowerWDFN
