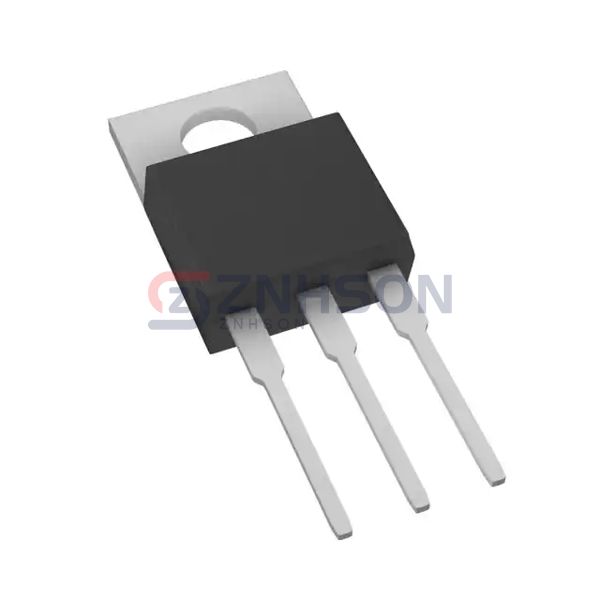

PJP60R290E_T0_00001
Panjit International Inc.
Panjit International Inc.
600V N-CHANNEL SUPER JUNCTION MO
$2.61
Available to order
Reference Price (USD)
1+
$2.61000
500+
$2.5839
1000+
$2.5578
1500+
$2.5317
2000+
$2.5056
2500+
$2.4795
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
For cutting-edge Transistors - FETs, MOSFETs - Single solutions, choose PJP60R290E_T0_00001 by Panjit International Inc.. A key player in Discrete Semiconductor Products, this MOSFET boasts low RDS(on), high current capacity, and excellent switching characteristics. Its applications span across telecom infrastructure, medical devices, and consumer electronics. Elevate your designs with PJP60R290E_T0_00001 inquire now for more details!
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 600 V
- Current - Continuous Drain (Id) @ 25°C: 1.7A (Ta), 15A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 290mOhm @ 6.5A, 10V
- Vgs(th) (Max) @ Id: 4V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 40 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 1013 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 184W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Supplier Device Package: TO-220AB
- Package / Case: TO-220-3
