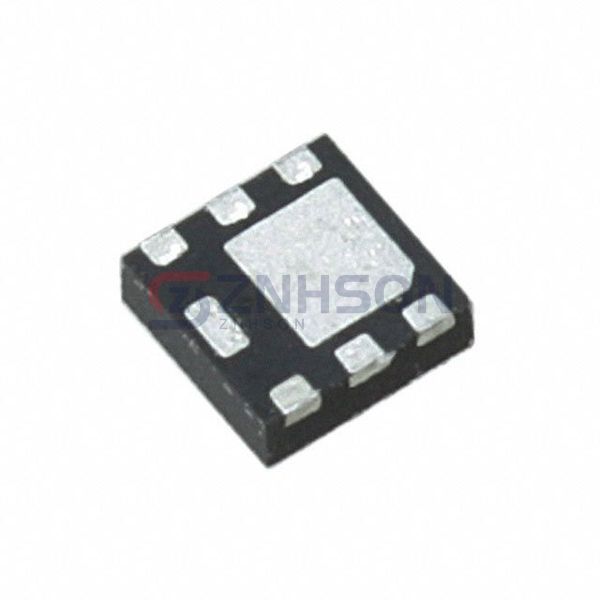

PMPB20UN,115
NXP USA Inc.
NXP USA Inc.
MOSFET N-CH 20V 6.6A 6DFN
$0.06
Available to order
Reference Price (USD)
1+
$0.06000
500+
$0.0594
1000+
$0.0588
1500+
$0.0582
2000+
$0.0576
2500+
$0.057
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with PMPB20UN,115 by NXP USA Inc., a top-tier choice in Discrete Semiconductor Products. Specifically crafted for Transistors - FETs, MOSFETs - Single applications, this product offers superior power handling and energy efficiency. Key features include high voltage tolerance, minimal power loss, and robust durability, making it perfect for switching and amplification tasks. Whether for industrial machinery, renewable energy systems, or portable devices, PMPB20UN,115 ensures reliable operation. Ready to integrate this component into your project? Submit an inquiry now for pricing and availability!
Specifications
- Product Status: Obsolete
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 20 V
- Current - Continuous Drain (Id) @ 25°C: 6.6A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 1.8V, 4.5V
- Rds On (Max) @ Id, Vgs: 25mOhm @ 6.6A, 4.5V
- Vgs(th) (Max) @ Id: 1V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 7.1 nC @ 4.5 V
- Vgs (Max): ±8V
- Input Capacitance (Ciss) (Max) @ Vds: 460 pF @ 10 V
- FET Feature: -
- Power Dissipation (Max): 1.7W (Ta), 12.5W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 6-DFN2020MD (2x2)
- Package / Case: 6-UDFN Exposed Pad
