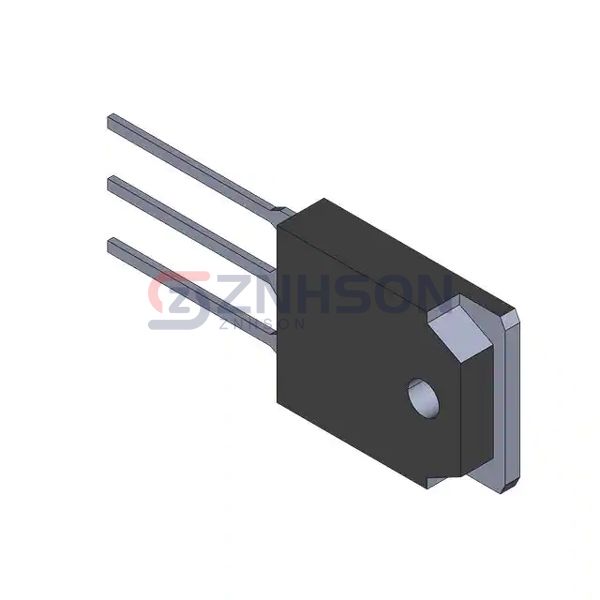

SGH40N60UFTU
Fairchild Semiconductor
Fairchild Semiconductor
INSULATED GATE BIPOLAR TRANSISTO
$3.49
Available to order
Reference Price (USD)
450+
$3.88431
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize power control with SGH40N60UFTU Single IGBTs from Fairchild Semiconductor, a leader in semiconductor solutions. Suited for medical equipment, aerospace, and consumer electronics, these transistors deliver precise switching and minimal noise. Highlights include high input impedance, scalable power ratings, and RoHS compliance. Fairchild Semiconductor ensures SGH40N60UFTU meets rigorous performance benchmarks. Inquire today to find the perfect fit for your application!
Specifications
- Product Status: Active
- IGBT Type: -
- Voltage - Collector Emitter Breakdown (Max): 600 V
- Current - Collector (Ic) (Max): 40 A
- Current - Collector Pulsed (Icm): 160 A
- Vce(on) (Max) @ Vge, Ic: 2.6V @ 15V, 20A
- Power - Max: 160 W
- Switching Energy: 160µJ (on), 200µJ (off)
- Input Type: Standard
- Gate Charge: 97 nC
- Td (on/off) @ 25°C: 15ns/65ns
- Test Condition: 300V, 20A, 10Ohm, 15V
- Reverse Recovery Time (trr): -
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-3P-3, SC-65-3
- Supplier Device Package: TO-3P
