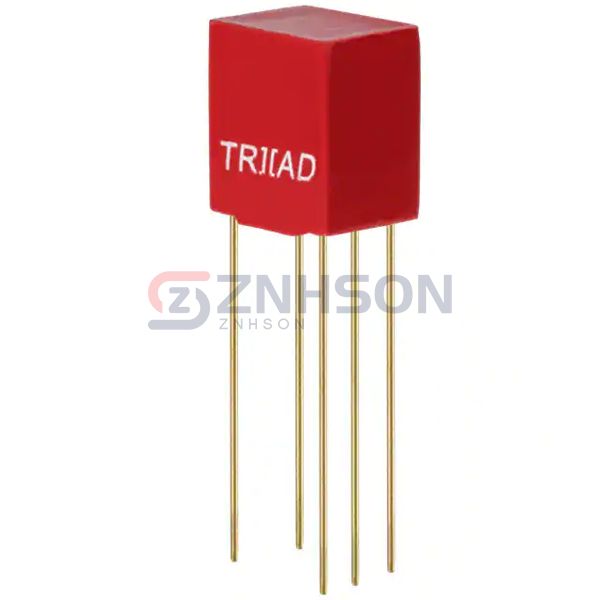

SP-48-B
Triad Magnetics
Triad Magnetics
TRANSER 7.5K CT/ 12 OHM AUDIO
$12.15
Available to order
Reference Price (USD)
672+
$10.54339
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Transform your audio applications with Triad Magnetics SP-48-B Audio Transformers, featuring cutting-edge technology and reliable performance. These transformers are essential for maintaining sound quality in various setups, from home theaters to professional studios. Trust Triad Magnetics to deliver components that make a difference. Request a quote now and enhance your audio systems.
Specifications
- Product Status: Active
- Turns Ratio - Primary:Secondary: 25:1
- Impedance - Primary (Ohms): 7.5kCT
- Impedance - Secondary (Ohms): 12
- DC Resistance (DCR) - Primary: 796Ohm
- DC Resistance (DCR) - Secondary: 2.9Ohm
- Transformer Type: Audio Coupling
- Frequency Range: 300Hz ~ 100kHz
- Frequency Response: ±2dB
- Voltage - Isolation: 1000VRMS @ 1 Second
- Insertion Loss: -
- Return Loss: -
- Power Level: 50mW
- Operating Temperature: -40°C ~ 85°C
- Approval Agency: -
- Mounting Type: Through Hole
- Size / Dimension: 0.410" L x 0.310" W (10.41mm x 7.87mm)
- Height - Seated (Max): 0.465" (11.80mm)
- Termination Style: PC Pin
