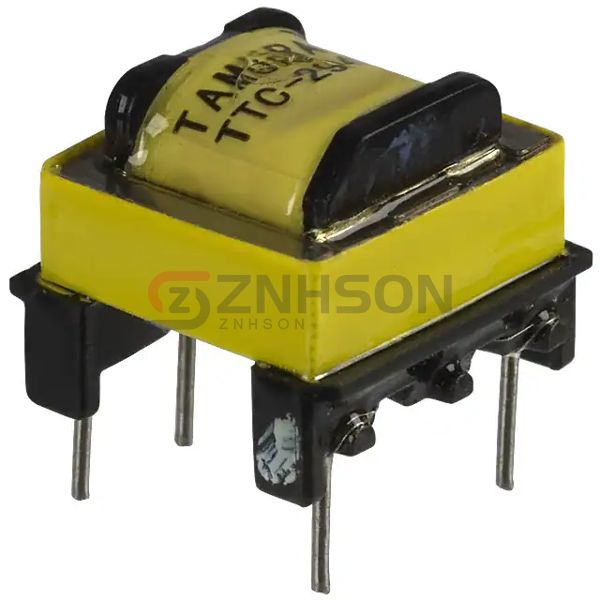

TTC-294
Tamura
Tamura
TRANSFORM TELECOMM COUPL 600 OHM
$2.67
Available to order
Reference Price (USD)
1,000+
$2.66600
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Maximize audio performance with Tamura TTC-294 Audio Transformers, offering industry-leading quality and efficiency. These transformers are perfect for high-end audio equipment, delivering pristine sound reproduction. Choose Tamura for components that set the standard. Submit your inquiry now and take your audio projects to the next level.
Specifications
- Product Status: Active
- Turns Ratio - Primary:Secondary: 1:1
- Impedance - Primary (Ohms): 600
- Impedance - Secondary (Ohms): 600CT
- DC Resistance (DCR) - Primary: 58Ohm
- DC Resistance (DCR) - Secondary: 14Ohm, 62Ohm
- Transformer Type: Data/Voice Coupling
- Frequency Range: 300Hz ~ 3.5kHz
- Frequency Response: ±0.16dB
- Voltage - Isolation: 1850V @ 1 Second
- Insertion Loss: 1.2dB Max @ 1kHz
- Return Loss: -
- Power Level: -
- Operating Temperature: -
- Approval Agency: UL1950
- Mounting Type: Through Hole
- Size / Dimension: 0.591" L x 0.571" W (15.00mm x 14.50mm)
- Height - Seated (Max): 0.472" (12.00mm)
- Termination Style: PC Pin
