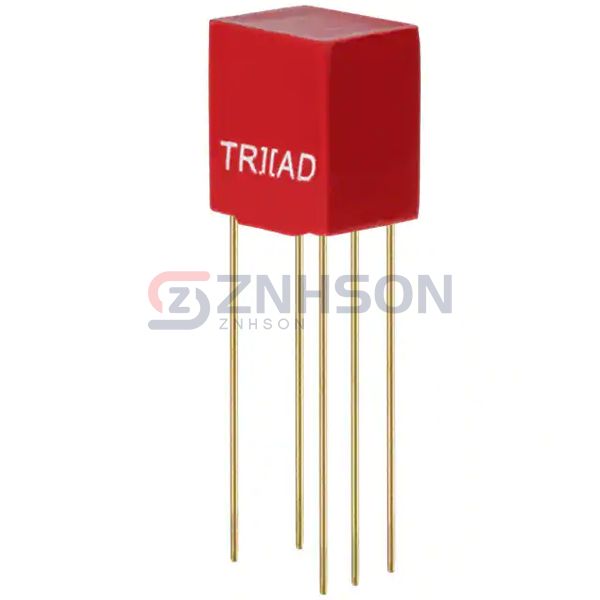

SP-50-B
Triad Magnetics
Triad Magnetics
TRANSER 500 CT/ 600 OHM AUDIO
$13.15
Available to order
Reference Price (USD)
672+
$10.67469
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your audio setups with Triad Magnetics SP-50-B Audio Transformers, crafted for precision and high fidelity. Suitable for both professional and hobbyist applications, these transformers deliver excellent frequency response and isolation. Depend on Triad Magnetics for quality that exceeds expectations. Submit your inquiry now and take the first step toward superior audio performance.
Specifications
- Product Status: Active
- Turns Ratio - Primary:Secondary: 1:1.1
- Impedance - Primary (Ohms): 500CT
- Impedance - Secondary (Ohms): 600
- DC Resistance (DCR) - Primary: 67Ohm
- DC Resistance (DCR) - Secondary: 98Ohm
- Transformer Type: Audio Coupling
- Frequency Range: 300Hz ~ 100kHz
- Frequency Response: ±2dB
- Voltage - Isolation: 1000VRMS @ 1 Second
- Insertion Loss: -
- Return Loss: -
- Power Level: 50mW
- Operating Temperature: -40°C ~ 85°C
- Approval Agency: -
- Mounting Type: Through Hole
- Size / Dimension: 0.410" L x 0.310" W (10.41mm x 7.87mm)
- Height - Seated (Max): 0.465" (11.80mm)
- Termination Style: PC Pin
