1650RA
Hammond Manufacturing
Hammond Manufacturing

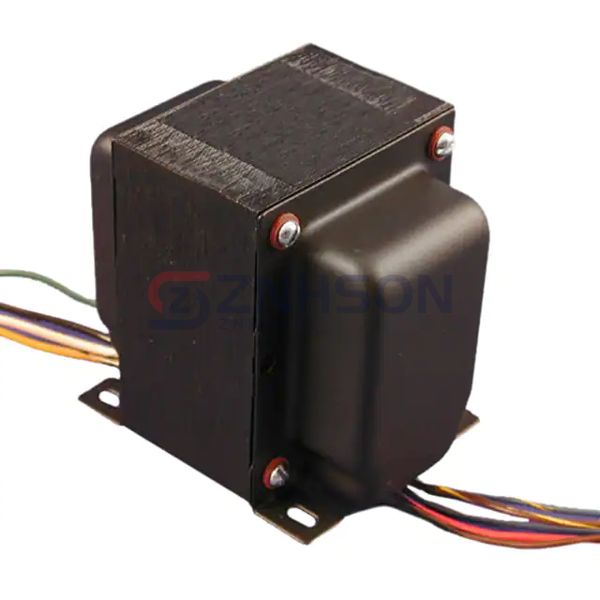

AUDIOPHILE TUBE OUTPUT TRANSFRMR
$191.78
Available to order
Reference Price (USD)
1+
$157.63000
10+
$146.36700
25+
$140.73760
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Boost your audio projects with Hammond Manufacturing 1650RA Audio Transformers, known for their robust construction and exceptional sound quality. These transformers are ideal for a wide range of applications, from PA systems to musical instruments, providing reliable and distortion-free performance. Count on Hammond Manufacturing for excellence in every component. Contact us now to discuss your requirements.
Specifications
- Product Status: Active
- Turns Ratio - Primary:Secondary: -
- Impedance - Primary (Ohms): 5kCT
- Impedance - Secondary (Ohms): 4, 8, 16
- DC Resistance (DCR) - Primary: 47.43Ohm, 54.65Ohm
- DC Resistance (DCR) - Secondary: 232mOhm, 333mOhm, 343mOhm
- Transformer Type: Push-Pull Audiophile, Ultra-Linear - Tube Output
- Frequency Range: 30Hz ~ 30kHz
- Frequency Response: ±1dB
- Voltage - Isolation: 3535VDC @ 1 Second
- Insertion Loss: -
- Return Loss: -
- Power Level: 100W
- Operating Temperature: -
- Approval Agency: -
- Mounting Type: Chassis Mount
- Size / Dimension: 4.250" L x 3.750" W (107.95mm x 95.25mm)
- Height - Seated (Max): 4.560" (115.82mm)
- Termination Style: Wire Leads
