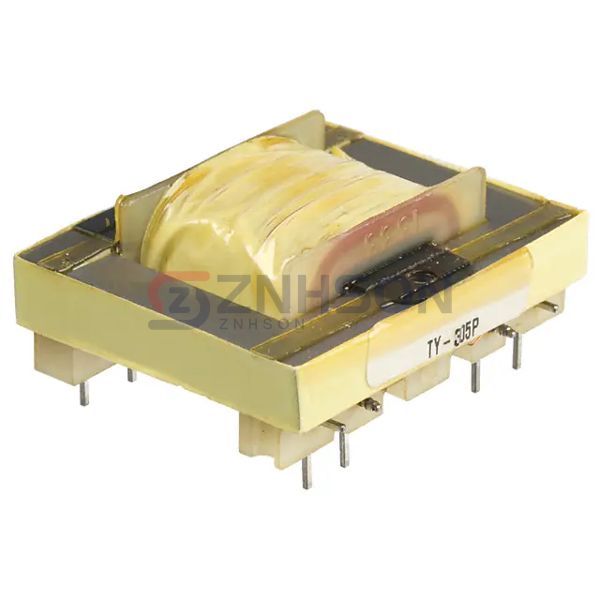

TY-305P-B
Triad Magnetics
Triad Magnetics
TRANSF 600 OHM 100MA DC TEL
$17.00
Available to order
Reference Price (USD)
108+
$13.52139
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your audio systems with Triad Magnetics TY-305P-B Audio Transformers, engineered for superior sound quality and durability. Ideal for amplifiers, mixers, and other audio devices, these transformers ensure minimal distortion and maximum efficiency. Trust Triad Magnetics for top-tier components that meet your audio needs. Request a quote now and experience the difference in your sound applications.
Specifications
- Product Status: Active
- Turns Ratio - Primary:Secondary: 1:0.90
- Impedance - Primary (Ohms): 600
- Impedance - Secondary (Ohms): 600
- DC Resistance (DCR) - Primary: 108Ohm
- DC Resistance (DCR) - Secondary: 61Ohm
- Transformer Type: Data/Voice Coupling
- Frequency Range: 300Hz ~ 3.5kHz
- Frequency Response: ±0.5dB
- Voltage - Isolation: 1500VAC
- Insertion Loss: 1.5dB Typ
- Return Loss: 10dB Typ
- Power Level: -45dB ~ 7dB
- Operating Temperature: -20°C ~ 85°C
- Approval Agency: -
- Mounting Type: Through Hole
- Size / Dimension: 1.650" L x 1.375" W (41.91mm x 34.93mm)
- Height - Seated (Max): 0.680" (17.27mm)
- Termination Style: PC Pin
