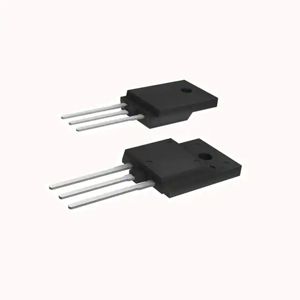

STGWA15H120DF2
STMicroelectronics
STMicroelectronics
IGBT HB 1200V 15A HS TO247-3
$3.07
Available to order
Reference Price (USD)
1+
$7.53000
30+
$6.55900
120+
$5.76517
510+
$5.08900
1,020+
$4.50100
2,520+
$4.45200
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The STGWA15H120DF2 Single IGBT by STMicroelectronics is a game-changer for energy-efficient systems. Ideal for HVAC, robotics, and power distribution, it boasts fast turn-off times and low gate drive requirements. Its advanced technology reduces energy waste and improves system longevity. Trust STMicroelectronics for premium-quality transistors backed by exceptional support. Request a sample or quote now to start your next innovation!
Specifications
- Product Status: Active
- IGBT Type: Trench Field Stop
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 30 A
- Current - Collector Pulsed (Icm): 60 A
- Vce(on) (Max) @ Vge, Ic: 2.6V @ 15V, 15A
- Power - Max: 259 W
- Switching Energy: 380µJ (on), 370µJ (off)
- Input Type: Standard
- Gate Charge: 67 nC
- Td (on/off) @ 25°C: 23ns/111ns
- Test Condition: 600V, 15A, 10Ohm, 15V
- Reverse Recovery Time (trr): 231 ns
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-247-3
- Supplier Device Package: TO-247-3
