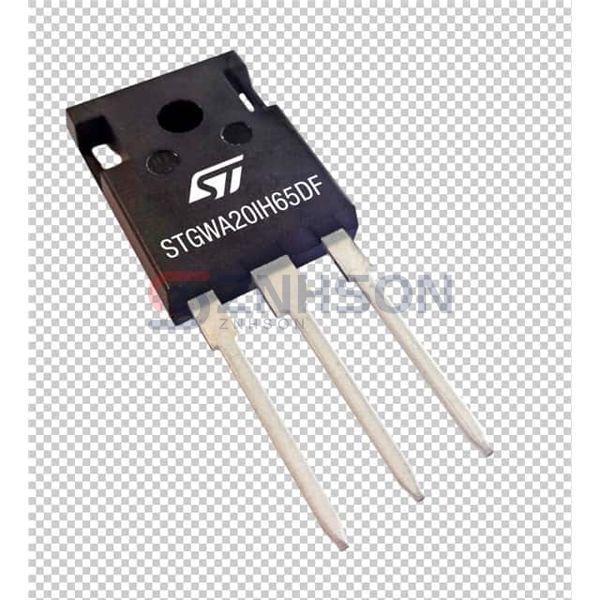

STGWA20IH65DF
STMicroelectronics
STMicroelectronics
TRENCH GATE FIELD-STOP 650 V, 20
$2.85
Available to order
Reference Price (USD)
1+
$2.85000
500+
$2.8215
1000+
$2.793
1500+
$2.7645
2000+
$2.736
2500+
$2.7075
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Maximize energy efficiency with STGWA20IH65DF Single IGBTs by STMicroelectronics, a trusted name in discrete semiconductors. Suitable for solar inverters, motor controllers, and more, these transistors feature low conduction loss and high switching frequency. Their robust design ensures long-term performance even in harsh environments. Choose STGWA20IH65DF for your next project and experience the STMicroelectronics difference. Submit your inquiry today for expert assistance!
Specifications
- Product Status: Active
- IGBT Type: Trench Field Stop
- Voltage - Collector Emitter Breakdown (Max): 650 V
- Current - Collector (Ic) (Max): 40 A
- Current - Collector Pulsed (Icm): 60 A
- Vce(on) (Max) @ Vge, Ic: 2.05V @ 15V, 20A
- Power - Max: 159 W
- Switching Energy: 110µJ (off)
- Input Type: Standard
- Gate Charge: 56 nC
- Td (on/off) @ 25°C: -/120ns
- Test Condition: 400V, 20A, 22Ohm, 15V
- Reverse Recovery Time (trr): -
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-247-3
- Supplier Device Package: TO-247 Long Leads
