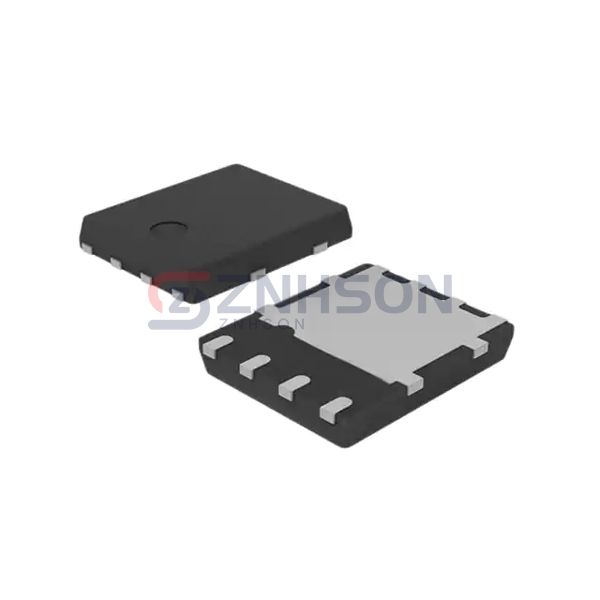

STL285N4F7AG
STMicroelectronics
STMicroelectronics
MOSFET N-CH 40V 120A POWERFLAT
$1.90
Available to order
Reference Price (USD)
3,000+
$1.64485
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your circuit performance with STL285N4F7AG, a premium Transistors - FETs, MOSFETs - Single from STMicroelectronics. As part of the Discrete Semiconductor Products lineup, this MOSFET excels in delivering high-speed switching and low power consumption. Its advanced design reduces heat generation and improves efficiency, suitable for power supplies, motor controls, and LED lighting. Trust STL285N4F7AG for consistent quality and long-lasting performance. For bulk orders or custom specifications, reach out to our sales team today!
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 40 V
- Current - Continuous Drain (Id) @ 25°C: 120A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 1.1mOhm @ 24A, 10V
- Vgs(th) (Max) @ Id: 4V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 67 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 5600 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 188W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: PowerFlat™ (5x6)
- Package / Case: 8-PowerVDFN
Related Products
onsemi
NDT014L
Diodes Incorporated
2N7002KQ-13
Infineon Technologies
IAUS300N10S5N015TATMA1
Vishay Siliconix

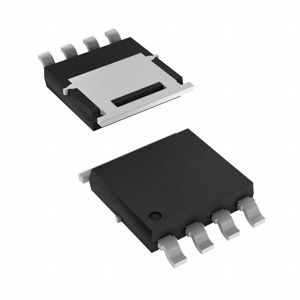

SQJA60EP-T1_BE3
Fairchild Semiconductor
FDD6680AS
onsemi

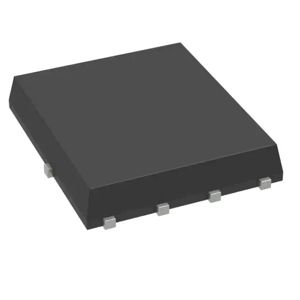

FDMS86252
