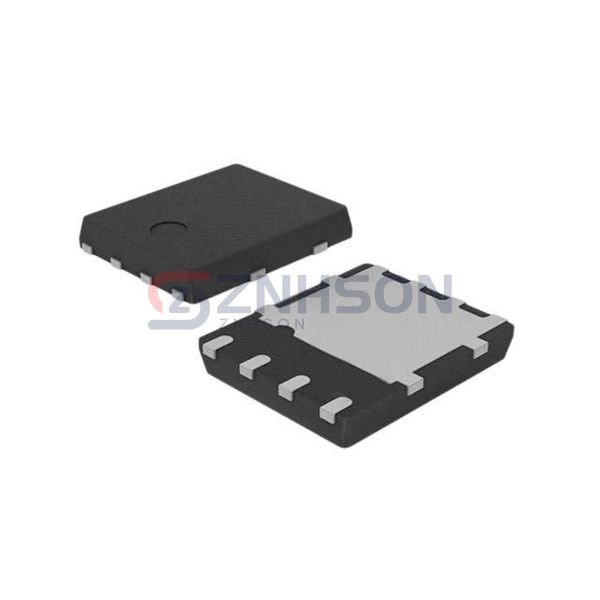

STL56N3LLH5
STMicroelectronics
STMicroelectronics
MOSFET N-CH 30V 56A POWERFLAT
$1.26
Available to order
Reference Price (USD)
3,000+
$0.26775
6,000+
$0.25125
15,000+
$0.24300
30,000+
$0.23850
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Boost your electronic applications with STL56N3LLH5, a reliable Transistors - FETs, MOSFETs - Single by STMicroelectronics. As a leader in Discrete Semiconductor Products, we offer components with low gate charge, high breakdown voltage, and excellent switching performance. Whether for aerospace, robotics, or energy systems, STL56N3LLH5 meets the highest standards. Contact our team today for expert advice and competitive pricing!
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 30 V
- Current - Continuous Drain (Id) @ 25°C: 56A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 9mOhm @ 7.5A, 10V
- Vgs(th) (Max) @ Id: 1V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 6.5 nC @ 4.5 V
- Vgs (Max): +22V, -20V
- Input Capacitance (Ciss) (Max) @ Vds: 950 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 62.5W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: PowerFlat™ (5x6)
- Package / Case: 8-PowerVDFN
Related Products
STMicroelectronics
STD60NF06T4
Vishay Siliconix
SI3499DV-T1-GE3
onsemi
FDS9431A
onsemi
FQD13N06LTM
Taiwan Semiconductor Corporation
TSM090N03ECP ROG
Infineon Technologies
IRFB5615PBF
Infineon Technologies
AUIRFS3006-7TRL
Diodes Incorporated

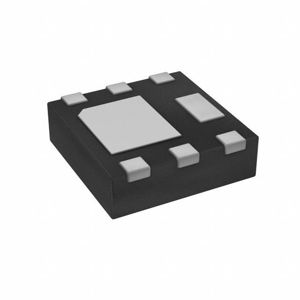

DMT6030LFDF-7
onsemi
NVMFS5A140PLZWFT1G

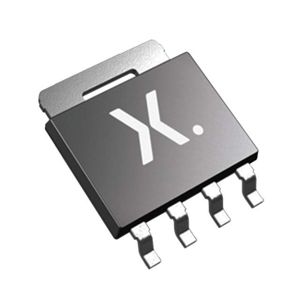

Nexperia USA Inc.
