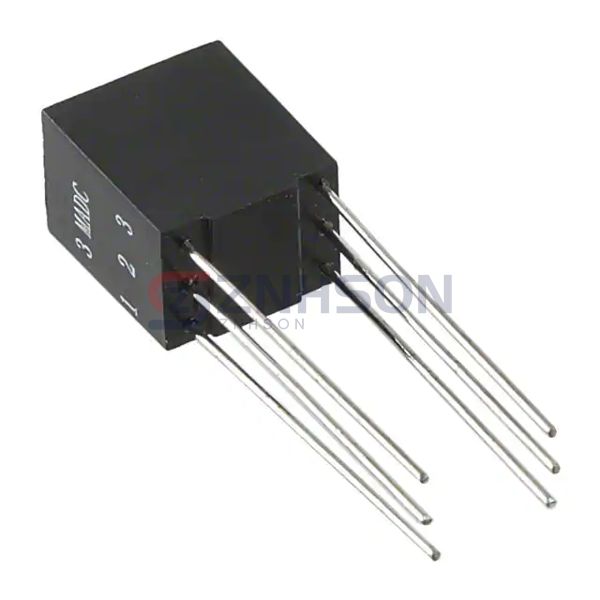

MET-01-T
Triad Magnetics
Triad Magnetics
AUDIO XFMR 200KCT/1KCT THRU HOLE
$14.18
Available to order
Reference Price (USD)
1+
$13.24000
10+
$9.78200
25+
$9.02960
50+
$8.72840
100+
$8.48760
250+
$8.36724
500+
$8.27696
1,000+
$8.12646
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Transform your audio applications with Triad Magnetics MET-01-T Audio Transformers, featuring cutting-edge technology and reliable performance. These transformers are essential for maintaining sound quality in various setups, from home theaters to professional studios. Trust Triad Magnetics to deliver components that make a difference. Request a quote now and enhance your audio systems.
Specifications
- Product Status: Active
- Turns Ratio - Primary:Secondary: 14.1:1
- Impedance - Primary (Ohms): 200kCT
- Impedance - Secondary (Ohms): 1kCT
- DC Resistance (DCR) - Primary: 5.3kOhm
- DC Resistance (DCR) - Secondary: 120Ohm
- Transformer Type: Data/Voice Coupling
- Frequency Range: 300Hz ~ 100kHz
- Frequency Response: ±2dB
- Voltage - Isolation: 500VRMS @ 1 Second
- Insertion Loss: -
- Return Loss: -
- Power Level: 10mW
- Operating Temperature: -20°C ~ 85°C
- Approval Agency: -
- Mounting Type: Through Hole
- Size / Dimension: 0.409" L x 0.310" W (10.40mm x 7.87mm)
- Height - Seated (Max): 0.465" (11.80mm)
- Termination Style: PC Pin
