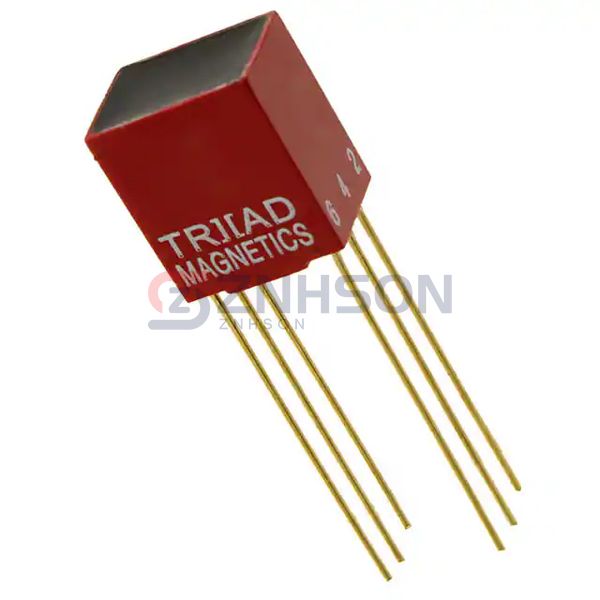

SP-13
Triad Magnetics
Triad Magnetics
TRANSF 25K CT 20K CT/1K 800CT AU
$20.74
Available to order
Reference Price (USD)
1+
$19.20000
10+
$14.62500
25+
$13.48240
50+
$13.02520
100+
$12.79670
250+
$12.33968
500+
$11.88266
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Boost your audio projects with Triad Magnetics SP-13 Audio Transformers, known for their robust construction and exceptional sound quality. These transformers are ideal for a wide range of applications, from PA systems to musical instruments, providing reliable and distortion-free performance. Count on Triad Magnetics for excellence in every component. Contact us now to discuss your requirements.
Specifications
- Product Status: Active
- Turns Ratio - Primary:Secondary: 5:1
- Impedance - Primary (Ohms): 25kCT, 20kCT
- Impedance - Secondary (Ohms): 1kCT, 800CT
- DC Resistance (DCR) - Primary: 1.7kOhm
- DC Resistance (DCR) - Secondary: 115Ohm
- Transformer Type: Audio Coupling
- Frequency Range: 300Hz ~ 100kHz
- Frequency Response: ±2dB
- Voltage - Isolation: 1000VRMS @ 1 Second
- Insertion Loss: -
- Return Loss: -
- Power Level: 40mW
- Operating Temperature: -40°C ~ 85°C
- Approval Agency: -
- Mounting Type: Through Hole
- Size / Dimension: 0.410" L x 0.310" W (10.41mm x 7.87mm)
- Height - Seated (Max): 0.465" (11.80mm)
- Termination Style: PC Pin
