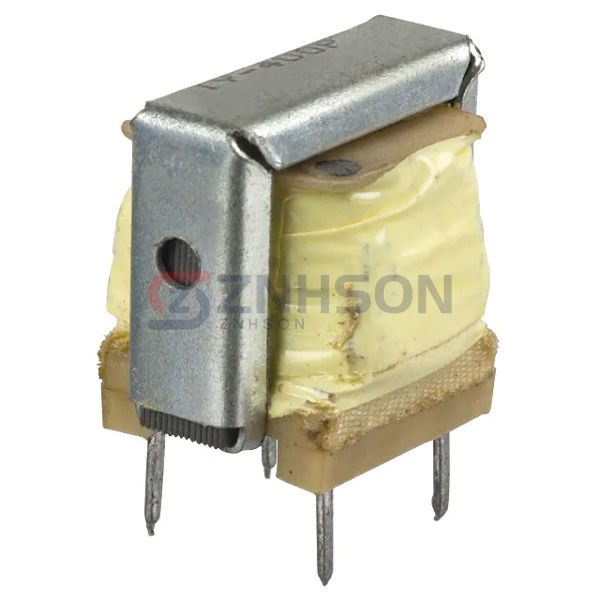

TY-400P-B
Triad Magnetics
Triad Magnetics
TRANSF 600 OHM 90MA DC TEL
$3.55
Available to order
Reference Price (USD)
360+
$3.13100
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Experience unparalleled audio precision with Triad Magnetics TY-400P-B Audio Transformers, built to meet the demands of modern audio systems. Whether for commercial or personal use, these transformers offer superior isolation and signal fidelity. Triad Magnetics is synonymous with quality and innovation. Send us your inquiry today and discover the perfect solution for your audio needs.
Specifications
- Product Status: Active
- Turns Ratio - Primary:Secondary: 1:1.07
- Impedance - Primary (Ohms): 600
- Impedance - Secondary (Ohms): 600
- DC Resistance (DCR) - Primary: 76.5Ohm
- DC Resistance (DCR) - Secondary: 108Ohm
- Transformer Type: Data/Voice Coupling
- Frequency Range: 300Hz ~ 3.5kHz
- Frequency Response: ±0.5dB
- Voltage - Isolation: 1500VAC
- Insertion Loss: 1.75dB Typ
- Return Loss: 15dB Typ
- Power Level: -45dB ~ 7dB
- Operating Temperature: -20°C ~ 85°C
- Approval Agency: -
- Mounting Type: Through Hole
- Size / Dimension: 0.820" L x 0.715" W (20.83mm x 18.16mm)
- Height - Seated (Max): 0.750" (19.05mm)
- Termination Style: PC Pin
