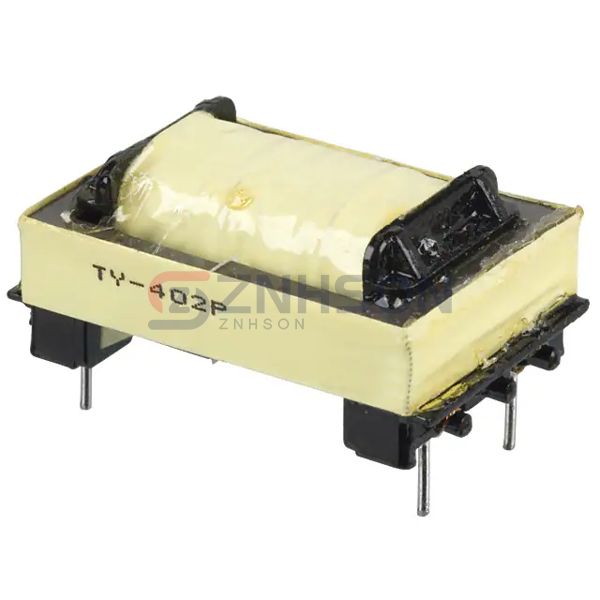

TY-402P
Triad Magnetics
Triad Magnetics
TRANSF 600 OHM 90MA DC TEL
$6.41
Available to order
Reference Price (USD)
1+
$5.88000
10+
$4.47100
25+
$4.35360
50+
$4.00060
100+
$3.76530
250+
$3.64760
500+
$3.52996
1,000+
$3.41229
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Achieve crystal-clear audio with Triad Magnetics TY-402P Audio Transformers, designed for versatility and top-notch performance. Perfect for use in studios, theaters, and home audio systems, these transformers ensure optimal signal transfer. Triad Magnetics is your trusted partner for high-end audio components. Reach out today for pricing and availability details.
Specifications
- Product Status: Active
- Turns Ratio - Primary:Secondary: 1:1.1
- Impedance - Primary (Ohms): 600
- Impedance - Secondary (Ohms): 600
- DC Resistance (DCR) - Primary: 80Ohm
- DC Resistance (DCR) - Secondary: 112Ohm
- Transformer Type: Data/Voice Coupling
- Frequency Range: 300Hz ~ 3.5kHz
- Frequency Response: ±0.5dB
- Voltage - Isolation: 1500VAC
- Insertion Loss: 1.75dB Typ
- Return Loss: 13dB Typ
- Power Level: -45dB ~ 7dB
- Operating Temperature: -20°C ~ 85°C
- Approval Agency: -
- Mounting Type: Through Hole
- Size / Dimension: 0.815" L x 1.250" W (20.70mm x 31.75mm)
- Height - Seated (Max): 0.530" (13.46mm)
- Termination Style: PC Pin
